Voltage Codes of Capacitors

Voltage Codes of Capacitors

Capacitors are essential components in electronic circuits & selecting the best one for your needs can make all the difference.

Understanding the voltage rating of a capacitor is critical when selecting one.

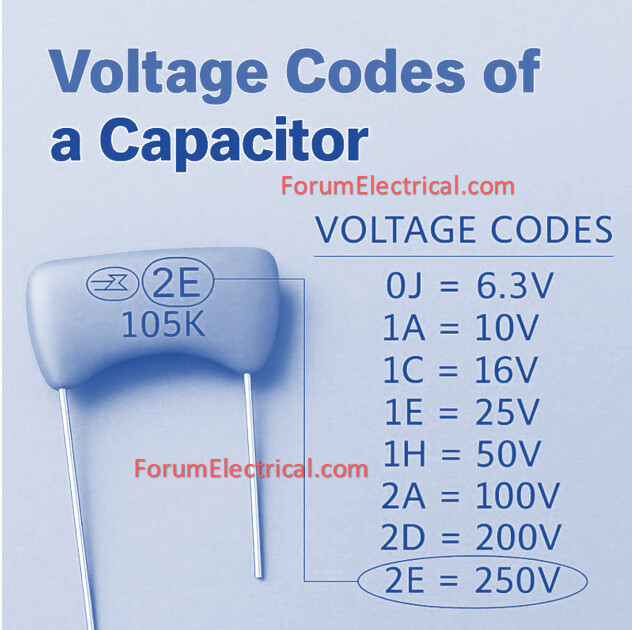

What are Voltage Codes on Capacitors?

The voltage code of a capacitor specifies the highest voltage it can safely withstand without breaking down (or) causing harm.

These ratings ensure that the capacitor functions properly under the conditions of the circuit it is a part of. Exceeding this voltage might cause capacitor failure and possibly damage to the entire system.

Key Voltage Code Categories

Rated Voltage (WVDC) - Capacitor’s maximum sustained voltage without breakdown.

Surge Voltage (V Surge) - The highest voltage that the capacitor can withstand for an extended amount of time without causing structural damage.

Derated Voltage - Derated Voltage occurs when capacitors run at voltages lower than their rated voltages in order to improve longevity, reliability, or efficiency.

Why Is Voltage Rating So Important?

Prevents Overloading: Utilizing a capacitor with insufficient voltage rating can result in failure and damage to the entire circuit.

Ensures Safety: Recognizing the voltage code helps ensuring that the component performs within its limits, hence avoiding dangers.

Maximizes Longevity: Running a capacitor at (or) near its voltage rating reduces its lifespan faster. A derated voltage is frequently a safer option for long-term dependability.

How Do I Choose the Correct Capacitor Based on Voltage Rating?

Know your Circuit’s Voltage: Always select a capacitor with the voltage rating greater than the maximum voltage that your circuit may encounter.

Consider Safety Margins: A capacitor’s rating should be 20-25% larger than the circuit’s maximum voltage to account for potential voltage spikes.

Check Manufacturer Specifications: For the safest and most dependable functioning, always follow the manufacturer’s voltage standards.

Capacitors are used in a variety of applications, including power supply, filters, motors, and energy storage devices.

Their voltage ratings vary. Understanding the voltage codes can help you make thoughtful choices about everything from consumer equipment to industrial machinery.
