Multimeter's Functions

Multimeter’s Functions

1). Automatic Voltage

2). AC Voltage & Frequency

3). Milli Voltage

4). Continuity

5). DC Current

6). DC Voltage

7). Resistance

8). Diode & Capacitance

9). AC Current & Frequency

10). Min/Max

11). Hold

12). Range

13). Function

14). Brightness

15). Volt Alert

16). LoZ

17). Current Socket (Red Probe)

18). Common Ground

19). Voltage & Resistance Socket (Red Probe)

1). Automatic Voltage: Automatically detects and measures AC (or) DC voltage for ease of use.

2 ). AC Voltage & Frequency: Measures alternating current voltage and frequency with high accuracy.

3 ). Milli Voltage: Detects low voltage levels with precision for sensitive applications.

4 ). Continuity: Tests circuit continuity with an audible alert for uninterrupted connections.

5 ). DC Current: Measures direct current flow, essential for battery and DC circuit analysis.

6 ). DC Voltage: Accurately measures direct current voltage across components.

7). Resistance: Determines resistance values in ohms for troubleshooting circuits.

8 ). Diode & Capacitance: Tests diode functionality and measures capacitance for component evaluation.

9 ). AC Current & Frequency: Measures alternating current and its frequency for AC systems.

10). Min/Max: Records minimum and maximum values over time for performance monitoring.

11). Hold: Freezes the display for convenient reading of measurements.

12 ). Range: Allows manual selection of measurement ranges for specific tasks.

13). Function: Rotates to select different measurement modes (e.g., voltage, current).

14 ). Brightness: Adjusts screen backlight for visibility in various lighting conditions.

15). Volt Alert: Non-contact voltage detection for safety during inspections.

16 ). LoZ: Low impedance mode prevents false readings from ghost voltages.

17). Current Socket (Red Probe): Input for current measurements, fused at 10A for safety.

18 ). Common Ground: Reference point (Black probe) for all measurements.

19 ). Voltage & Resistance Socket (Red Probe): Input for voltage & resistance measurements, rated at 600V.

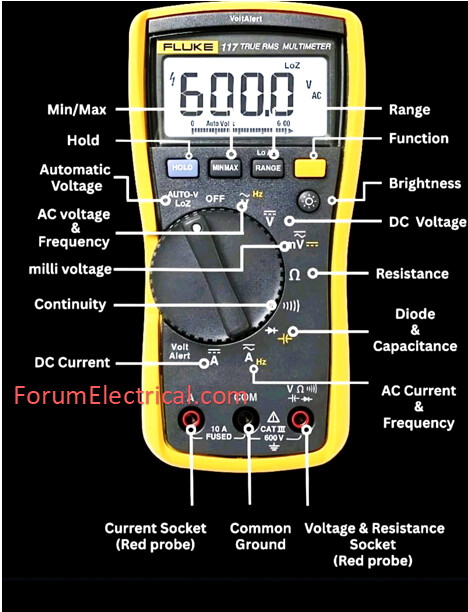

The Fluke 117 True RMS Multimeter is a versatile tool for electricians and engineers providing accurate measurements across multiple parameters.

Its robust design and safety features make it ideal for industrial and field applications.
