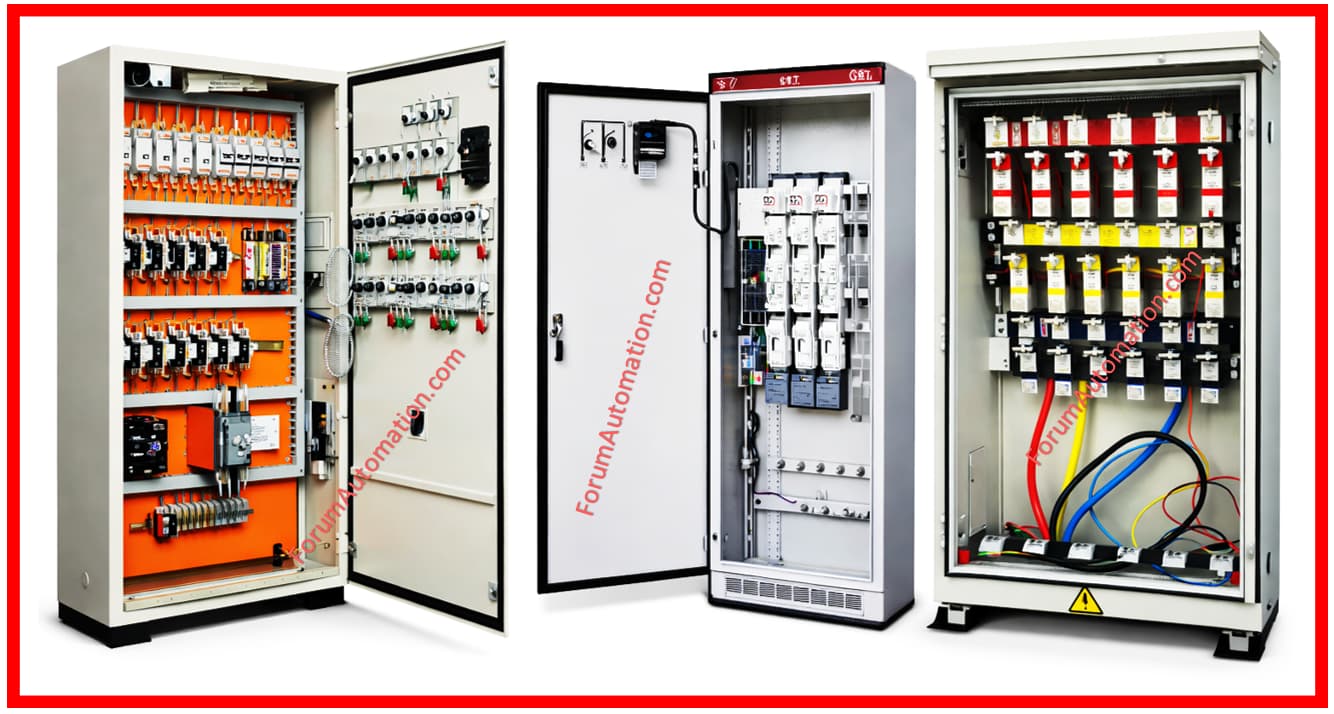

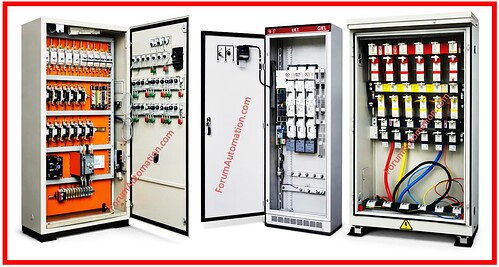

Why Panels are designed for 80% loading not 100%?
Panels and switchboards in electrical power distribution systems are never designed to run at maximum capacity on a continuous basis.
However, industry standards & engineering best practices suggest designing panels to withstand 80% loading.
This flexibility is essential for ensuring the safety, dependability, thermal stability & long service life of electrical equipment.
Continuously operating panels at 100% load can cause overheating, annoyance tripping and premature component breakdown.
Continuous Load Rule & Electrical Standards
Electrical regulations including the
- NEC (National Electrical Code) &
- IEC-based design principles
describe a continuous load as one that functions for three hours or longer.
For such loads, conductors & overcurrent safety devices should be sized so that the continuous current never exceeds 80% of the panel’s rated capacity.
This rule assures that the system can withstand long-duration loads without exceeding the thermal restrictions.
Thermal Heating & Dissipation
I²R losses generate heat as current travels through conductors and busbars.
At 100% loading, heat accumulation within the panel accelerates particularly in enclosed (or) poorly ventilated installations.
Continuous running at 80% load enables for efficient heat dissipation avoids insulation degradation and maintains component temperatures below safe operating limits.
Circuit Breaker Performance & Derating
Most circuit breakers are built and calibrated to ensure that continuous current does not exceed 80% of their rated value.
Continuously using breakers at 100% load can lead to thermal stress, inaccurate tripping characteristics & nuisance trips.
By limiting the load to 80% breakers can function within their designed thermal range resulting in more dependable protection & longer service life.
Impact of Ambient Temperature
Panel & breaker ratings are commonly set for ambient temperatures between 30°C and 40°C.
In real-world installations, electrical rooms frequently have greater temperatures due to poor ventilation, heat from neighboring equipment or environmental circumstances.
Elevated ambient temperatures diminish the current-carrying capability of conductors & breakers.
The 80% loading recommendation provides a margin for error to account for these on-site circumstances.
Voltage Drop & System Efficiency
Higher loading increases current flow resulting in a larger voltage drop across busbars and wires.
Excessive voltage drops can harm sensitive equipment and impair motor performance.
Maintaining panels at 80% load helps to limit voltage drop, improves system efficiency & guarantees that associated loads operate reliably.
Future Expansion & Reliability
Designing panels at 80% capacity also leaves room for future load growth without requiring rapid system improvements.
It decreases component stress, prevents unexpected failures, and enhances overall system reliability.
This method is particularly crucial in industrial plants, where unanticipated downtime can be quite costly.
Summary
Electrical panels are designed to withstand 80% load to provide safety, thermal stability, dependable breaker operation and conformity with electrical regulations.
This design concept keeps equipment from overheating, extends its service life, adapts real-world operating conditions & provides flexibility for future expansion.
Operating below this limit is a basic best practice in professional electrical engineering.
