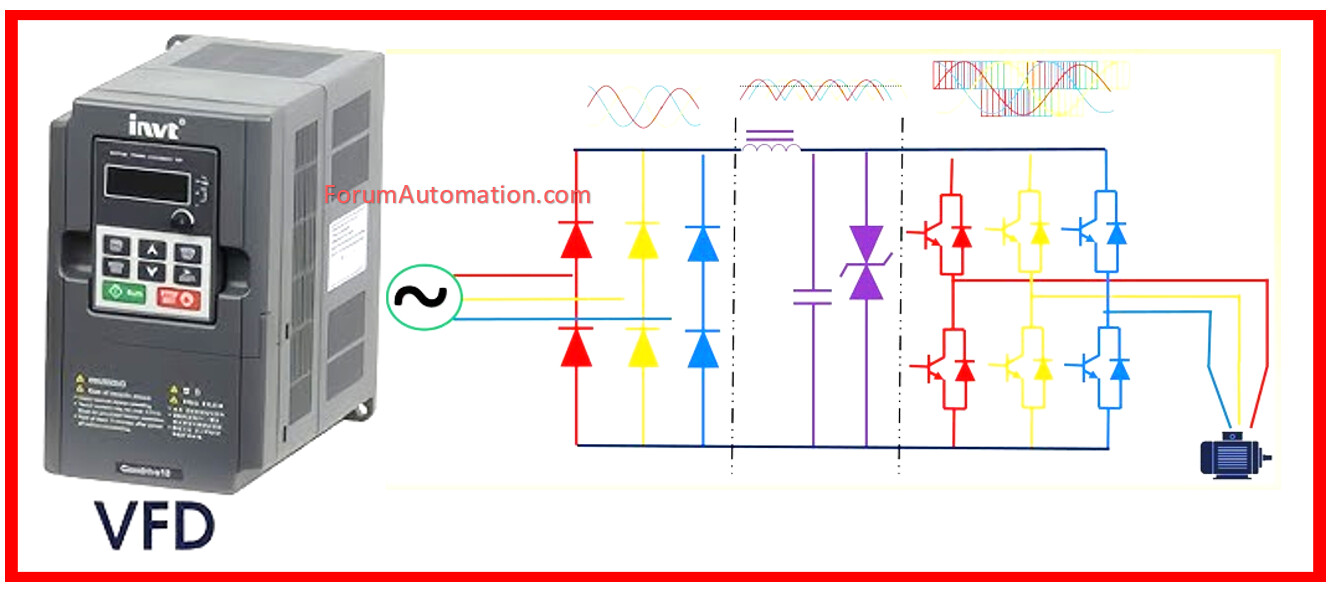

Selecting the right Variable Frequency Drive (VFD) is essential for optimizing efficiency, ensuring safety, and maintaining cost-effectiveness in any electrical system. Here’s a professional, step-by-step guide to help you make the right choice, complete with practical formulas and detailed calculations.
Understand Your Load Requirements
Before diving into calculations, gather these key details:
Motor Power (kW or HP)
Motor Full Load Current (FLC)
Voltage Supply (V)
Load Type (Constant or Variable Torque)
Example:
Motor Power = 30 kW
Voltage = 415 V
Motor Efficiency (η) = 90%
Power Factor (PF) = 0.85
Calculate Full Load Current (FLC)
Formula:
FLC = (P x 1000) ÷ (√3 x V x PF x η)
Substitute the values:
FLC = (30 x 1000) ÷ (√3 x 415 x 0.85 x 0.9)
FLC = 50.67 A
The motor’s Full Load Current is 50.67 A.
Determine VFD Capacity
VFDs are rated in kW. Add a 10–15% safety margin to the motor power:
Formula:
VFD Size = Motor Power x (1 + Safety Margin)
For a 30 kW motor with a 10% margin:
VFD Size = 30 x 1.1 = 33 kW
Verify Overload Capacity
Most VFDs can handle 150% of the Full Load Current (FLC) for 1 minute. Ensure the selected VFD supports this requirement to manage motor startup or overloads effectively.
Check Cable Voltage Drop (VD)
For longer cable runs, voltage drop impacts performance. Use:
Formula:
VD = 2 x L x I x R
Where,
• L = Cable length (meters)
• I = Current (amps)
• R = Cable resistance (ohms/m)
Example:
• L = 50 m
• I = 50.67 A
• R = 0.0175 Ω/m
VD = 2 x 50 x 50.67 x 0.0175 = 88.67 V
Ensure VD is less than 5% of the supply voltage:
Percentage Voltage Drop = (VD x 100) ÷ Supply Voltage
(88.67 x 100) ÷ 415 = 21.37% (Too High—requires adjustments).
Select the Right Features
Choose a VFD with essential features for optimal performance:
- Overcurrent Protection
- Thermal Overload Protection
- Energy Efficiency Modes
- Harmonic Filtering
Conclusion
Choosing the right VFD is more than just matching motor specifications. By following these steps, you ensure your system is optimized for performance, safety, and efficiency. Avoid costly mistakes and achieve peak functionality in your setup.
