What Is the Purpose of an Instrument Index?

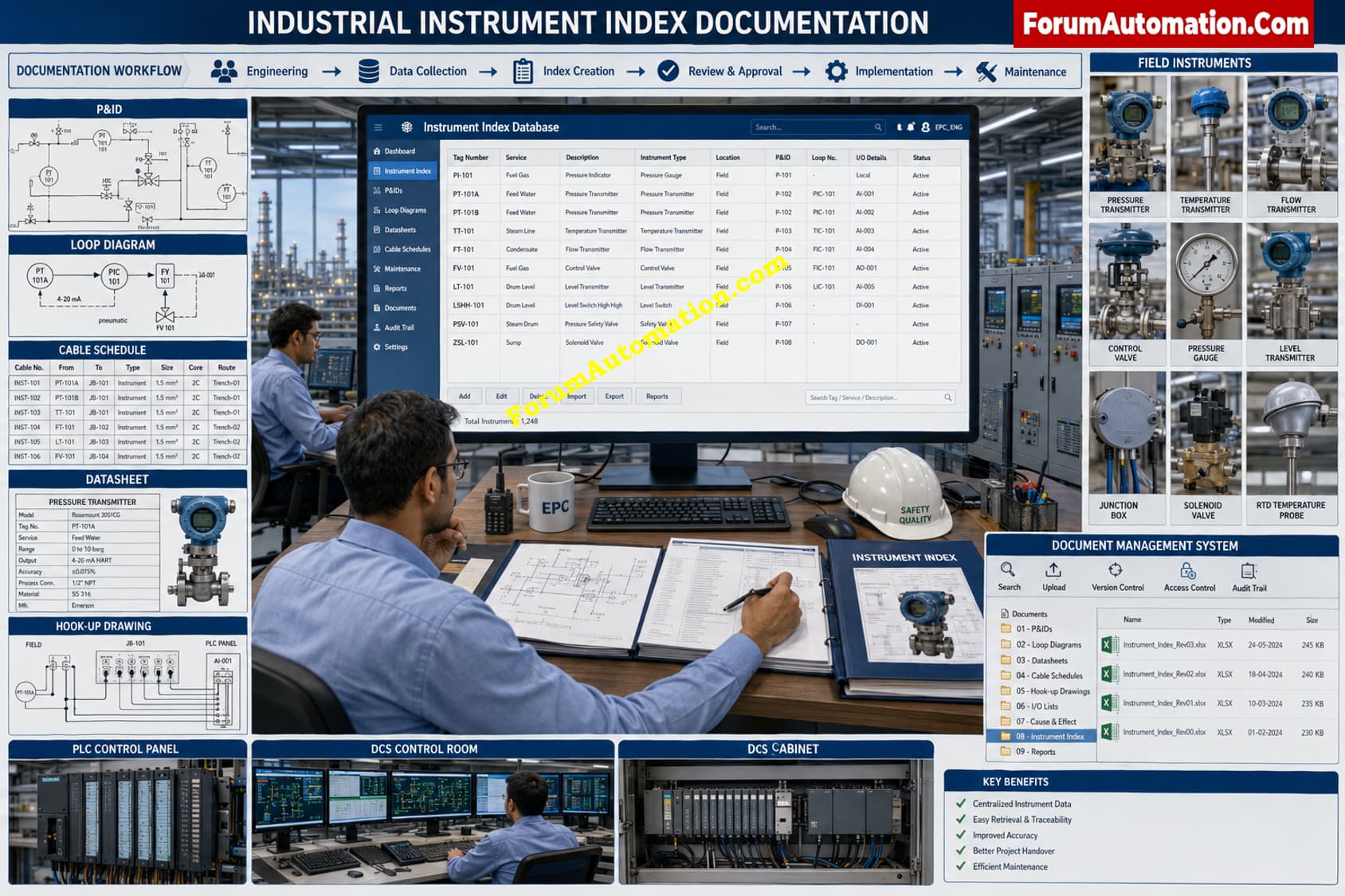

An instrument index is the master record that lists every instrument that is put in a plant during the engineering, procurement, construction, commissioning and maintenance phases. It provides a single source of information linking instrument tags to specifications, locations, drawings, loop numbers, cable schedules and datasheets and process functions. A good instrument index will help improve project coordination and document control and asset management during the lifecycle of the plant.
Information Included
A typical instrument index contains:
- Instrument tag number
- Service description
- P&ID reference
- Instrument type
- Measuring range
- Process connection
- Location
- Signal type
- Control system allocation
- Datasheet reference
- Loop drawing reference
- Vendor details
- Commissioning status
Why It Is Important
During the EPC, the instrument index is used by engineers to confirm procurement quantities, construct cable schedules, build loop folders and follow installation progress. Commissioning teams rely on it to verify instrument calibration, loop checks, and functional testing.
The instrument index is a rapid way for maintenance engineers to locate transmitters, switches, analyzers, control valves, and safety devices in operational plants. It also makes it easier to change loops during plant expansions and shutdown projects by identifying the loops involved and the supporting documentation.
An instrument index that is constantly updated saves engineering errors, avoids duplication of tag numbers, increases consistency of documents and allows for efficient maintenance planning. Because each instrument is associated with a number of engineering documents, a correct index is important for safe and dependable plant operation.
The instrument index is the backbone of instrumentation documentation for every industrial automation project and is still one of the most valuable engineering deliverables from project inception to plant operation.
