What is the flow rate up to 1.0 Cv?
What is the flow rate up to 1.0 Cv?
A valve with a Cv value of 1.0 means the valve can pass approximately 1 US gallon per minute of water at 60°F with a pressure drop of 1 psi across the valve. Cv is widely used in instrumentation and control engineering to compare valve flow capacity and perform valve sizing calculations for industrial processes.
Understanding 1.0 Cv Flow Rate
The standard definition is:
- Cv 1.0 equals 1 GPM water flow
- Pressure drop across valve is 1 psi
- Water temperature is approximately 60°F
This relationship applies mainly to liquid service conditions. Actual flow changes if pressure drop or fluid specific gravity changes.

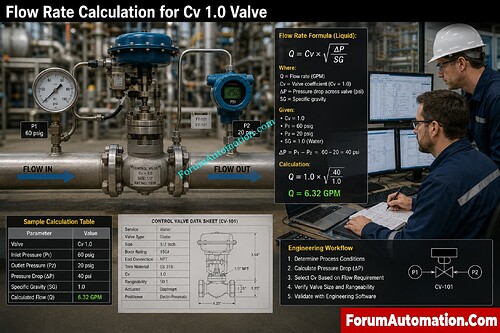

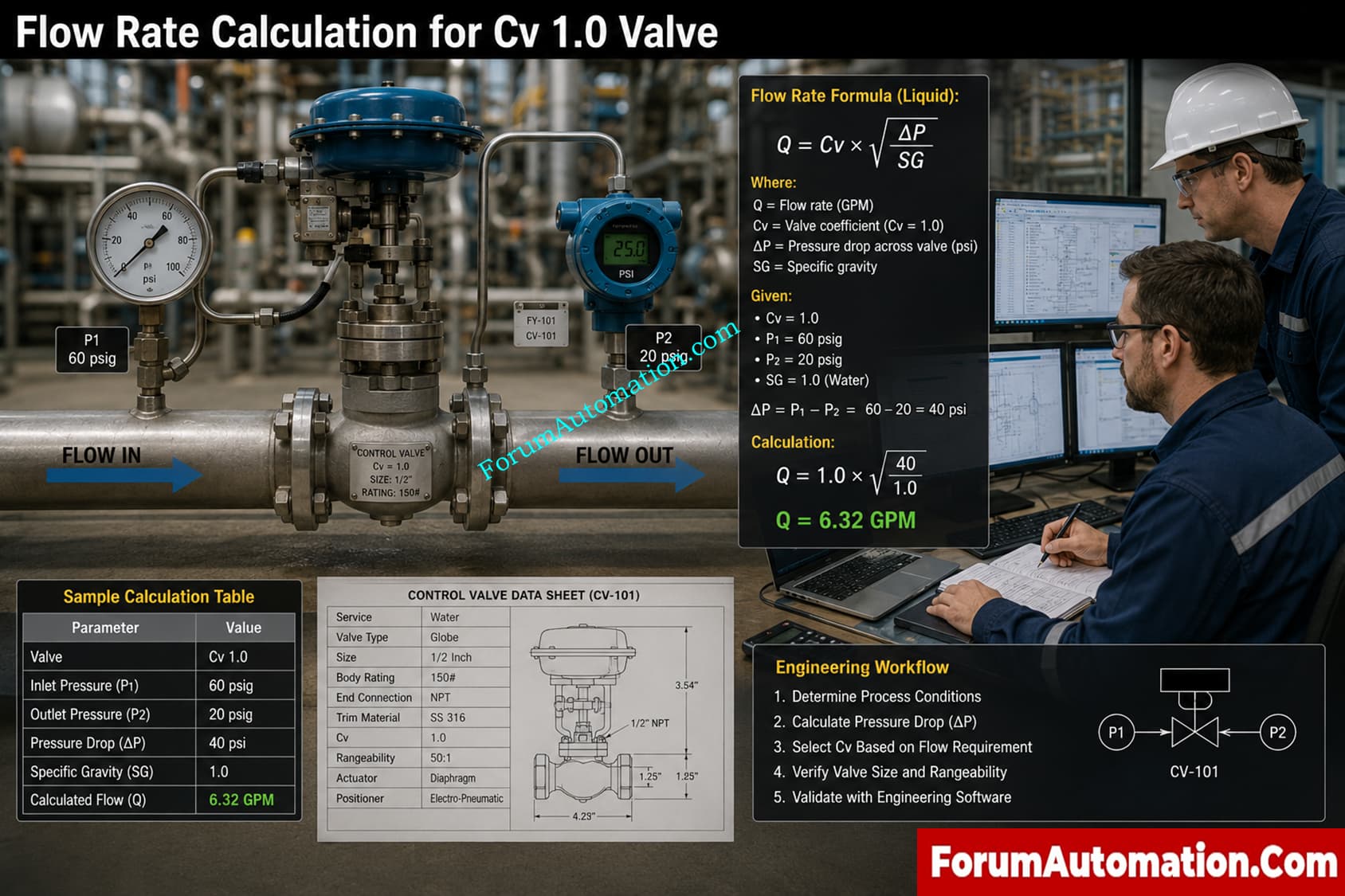

Flow Calculation Example
For water service:
If:
Cv = 1.0 Pressure drop = 4 psi Specific gravity = 1
Then:
Q = 1 × √4
Q = 2 GPM
This means increasing pressure drop increases flow through the valve.
Industrial Application
Small Cv valves are commonly used in:
- Chemical dosing systems
- Instrument air applications
- Analyzer sample lines
- Cooling water control loops
- Fuel gas pilot systems
In process industries, engineers have to check Cv values carefully, because wrong size might lead to unstable control, noise, flashing or cavitation. Low Cv may also cause excessive pressure drop and less efficient operation.
Engineering Best Practices
- Cv to the range of operational flow
- verify minimum and maximum process conditions
- Check the fluid’s density and viscosity.
- Don’t use large control valves
- Selection of check valve characteristic
The proper understanding of Cv can increase accuracy of flow control, stability of the process, and dependability of control valves in industrial applications.
