What is the difference between multi-mode and single mode fiber?
Multi-Mode and Single-Mode Optical Fibers

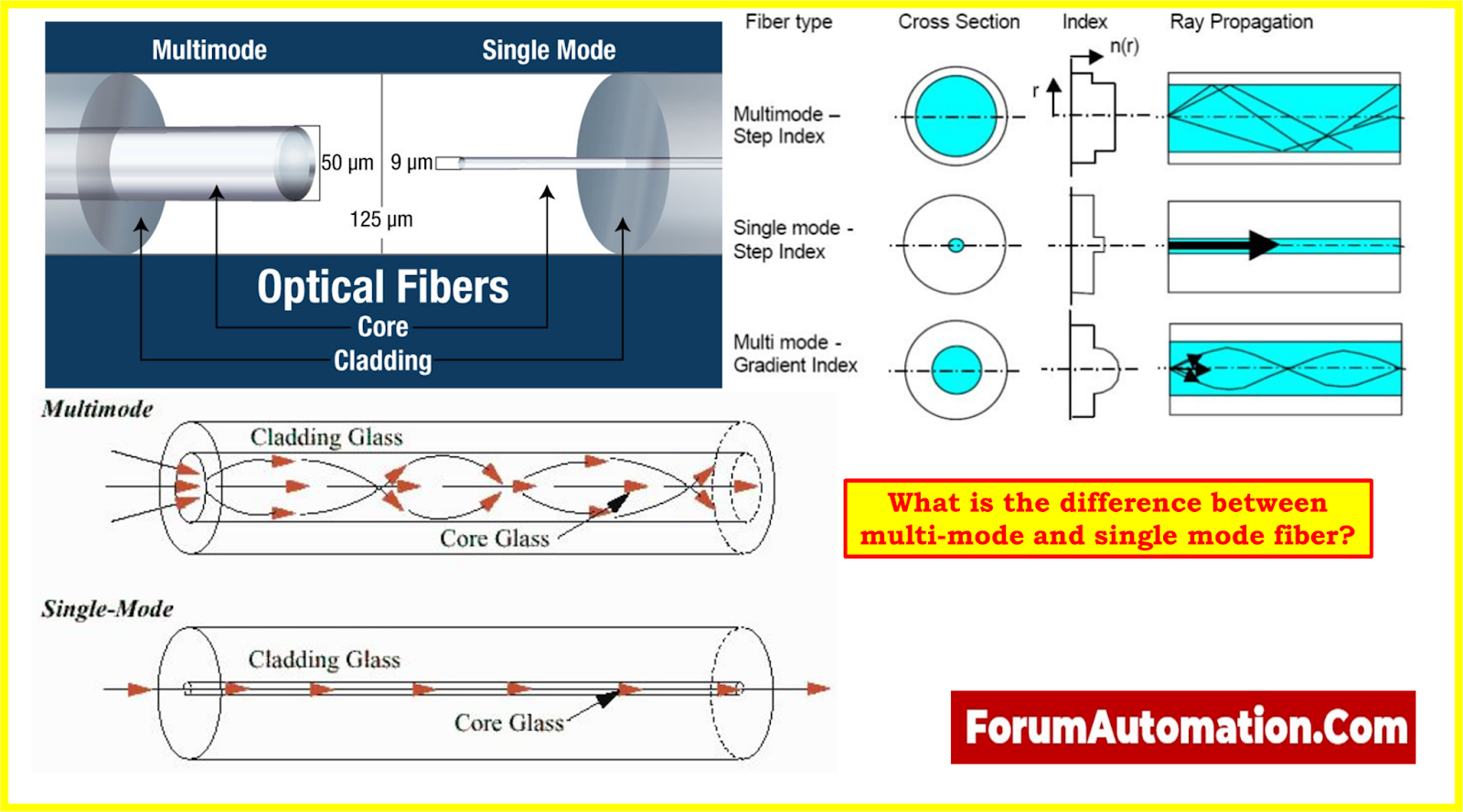

Thin strands of glass or plastic called optical fibers are used to send light signals across great distances. Through their cores, these fibers function as waveguides, facilitating the passage of light. Optical fibers can be divided into single-mode and multi-mode fibers based on their core size and intended use. This is a simplified description of their uses and distinctions.
What Are Single-Mode Fibers?
Single-mode fibers have very small cores (4-10 microns). These allow only one light path to propagate, avoiding modal dispersion entirely. All portions of the light signal travel the same distance and arrive at the end without distortion.
Advantages:
- Maintains high signal integrity.
- Ideal for long-distance and high-speed communication.
Applications:
- Used in telecommunications and internet backbone cables for intercontinental and transcontinental data transfer.
What Are Multi-Mode Fibers?
Multi-mode fibers have larger cores (50 microns or more), allowing multiple light rays, or “modes,” to travel simultaneously through the core. Each mode takes a slightly different path, with some traveling straighter and others more angled. This variation causes modal dispersion, where light signals spread out over time.
Effect of Modal Dispersion:
- Leads to “smearing” of signals over long distances.
- Limited bandwidth, especially in long or high-speed data transmission.
Applications:
- Best suitable for short-distance communication, such as within data centers or buildings.
Key Differences Between Multi-Mode and Single-Mode Fibers
| Feature | Multi-Mode Optical Fiber | Single-Mode Optical Fiber |
|---|---|---|
| Core Diameter | Typically 50 microns or more | Typically 4 to 10 microns (8 microns is common) |
| Light Pathways | Multiple modes (light travels in different paths) | Single mode (light travels in one straight path) |
| Signal Quality | Prone to modal dispersion, leading to signal degradation over long distances | Eliminates modal dispersion, ensuring high signal quality |
| Data Transmission Range | Suitable for short to medium distances (e.g., local area networks) | Ideal for long-distance communication (e.g., transcontinental cables) |
| Ease of Splicing | Easier to splice due to larger core diameter | More challenging to splice due to smaller core diameter |
| Cost | Generally less expensive to manufacture | More expensive due to precision and specialized materials |
| Bandwidth | Lower bandwidth due to modal dispersion | Higher bandwidth with no modal dispersion issues |
Graded-Index Multi-Mode Fibers
Graded-index fibers, which vary the refractive index throughout the core, provide a way to reduce modal dispersion in multi-mode fibers. Light routes near the edges move more quickly, while those closer to the center move more slowly (higher refractive index). This improves performance and minimizes the variation in travel times.
| Type | Core Design | Benefit |
|---|---|---|
| Step-Index Fiber | Uniform refractive index | Simpler design, higher modal dispersion |
| Graded-Index Fiber | Gradually changing refractive index | Reduced modal dispersion, better signal quality |
Understanding these differences helps in selecting the right optical fiber for specific applications in telecommunications and data networks.
