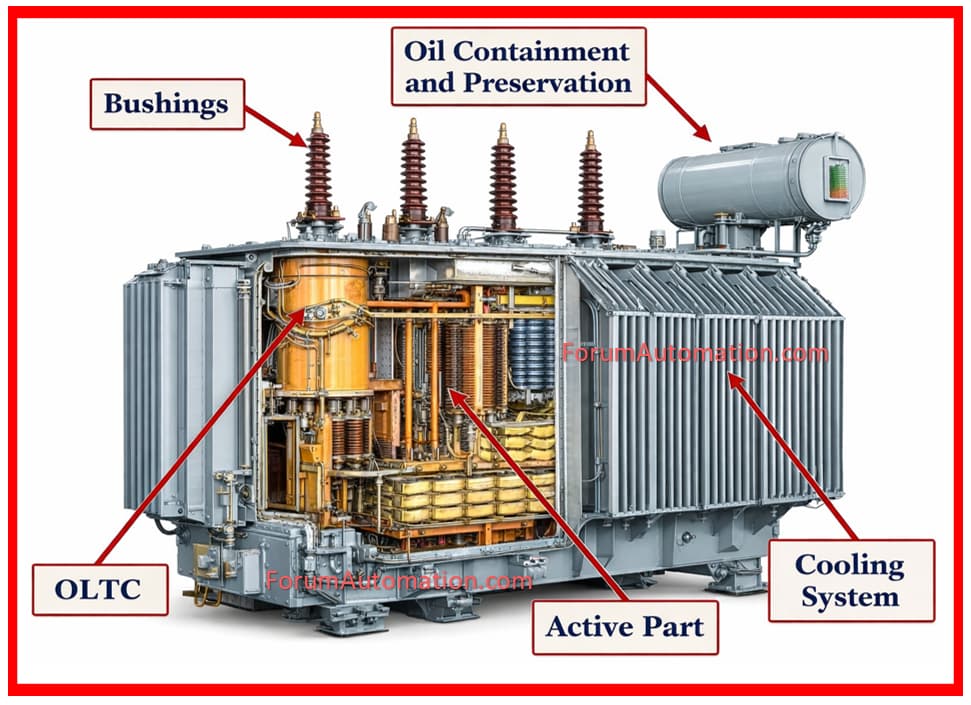

What is the 80% rule for transformers?
The 80% rule for transformers states that a transformer’s continuous load must not go above 80% of its rated capacity (nominal rating) to guarantee safety, efficiency and lifespan. It works as a safety buffer preventing overheating, voltage drops and, particularly for continuous loads and prevents overload.
Permit Safety Margin
The electricity system may face unexpected quick load spikes.
If a transformer is consistently operating at 100% of its rated capacity, any slight extra load may cause the transformer to overload possibly causing protective systems to trip and resulting in a power failure.
Short-term demand variations may be absorbed by saving 20% of capacity as a backup, resulting in a consistent and dependable power supply.
Avoid Overheating and Increase Longevity
A transformer’s lifetime is mostly determined by its insulation material and the insulation material’s aging rate is directly proportional to operational temperature.
According to the “10-degree rule,” every 6-10°C rise in transformer operating temperature doubles the insulating material’s aging rate and reduces its lifetime by half.
Operating transformer at 80% load causes a far lower temperature increase than full load operation greatly increasing the transformer’s service life.
Increase Energy Efficiency & Reduce Operating Costs
Transformer efficiency is normally better at lower loads (such as 30%-60%) and about 80% load, however at almost 100% full load, copper losses (load losses) grow dramatically, lowering efficiency.
Operating at 80% load enables the transformer to operate at a high efficiency level, decreasing energy loss & saving significant power expenses in the long term.accommodate future expansion needs.
If future load increase is expected during planning & design use the 80% rule to allow for future development.
This avoids the requirement for replacing the transformer with larger capacity in immediate term reducing remodeling expenses.
Source & Standards of Rule
The 80% rule is similar in principle to several electrical standards and best practice recommendations such as the National Electrical Code (NEC) in United States.
Although the NEC does not specifically state that “all transformers must operate at 80% load,” it does specify that continuously running loads (those maintained for 3 hours or longer) must not exceed 80% of the rated value of circuit components.
This conservative design principle is commonly used for transformer selection & operation.
Transformers can handle short-term high loads. In an emergency (for example, before a backup transformer is brought online), a transformer may handle more than 100% load for a short period of time.
However, this should never be utilized as a standard operating procedure.
Large projects or severe electrical designs need engineers to do more exact load estimates, thermal assessments and economic evaluations.
However, the 80% rule is a simple, practical and safe guideline that is very useful for initial selection and day-to-day operations.
