What is meaning of Failsafe Systems?

What is meaning of Failsafe Systems?

A failsafe system is a design method that assures the equipment automatically goes into a safe condition when a fault, failure (or) power loss occurs.

A failsafe system is one that protects people and equipment by defaulting to safety during failure.

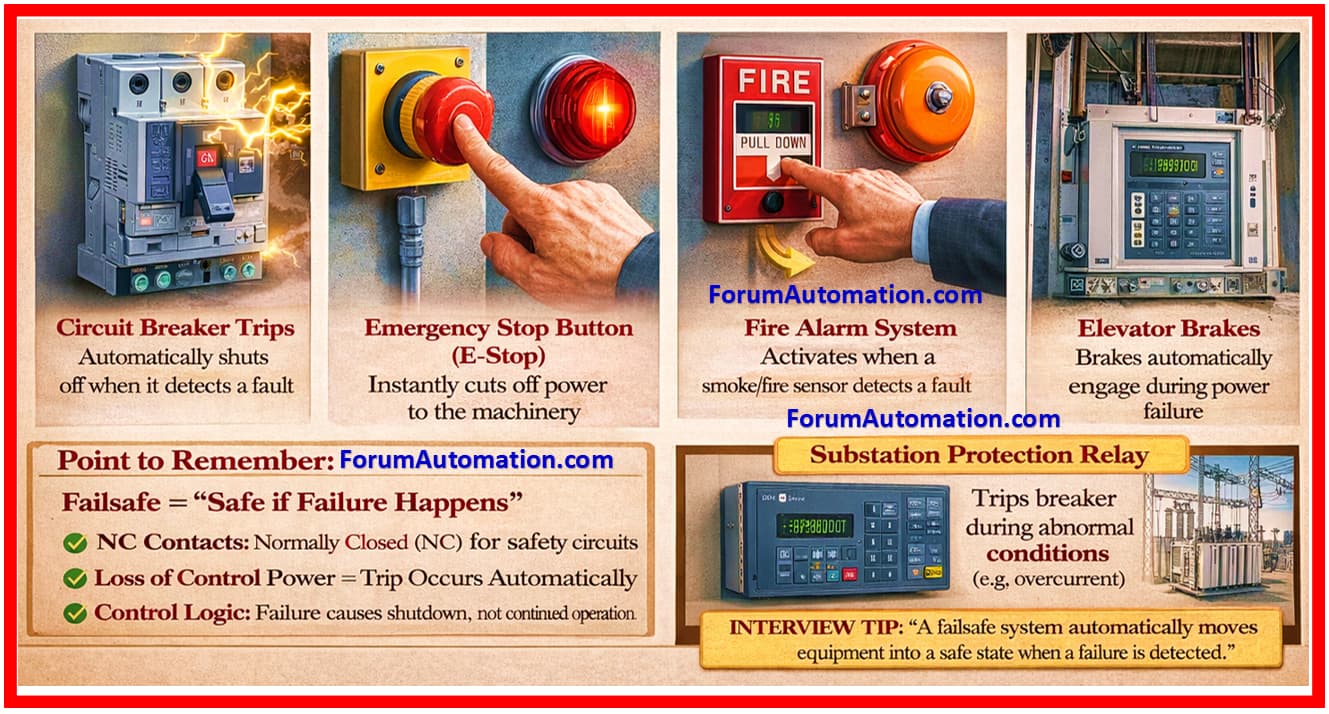

Examples

• Circuit breaker trips when there is a fault → system becomes safe.

• Emergency stop button (E-Stop) → cuts power immediately.

• Fire alarm system → activates when a fault is detected.

• Elevator brakes → engage automatically during power failure.

• Substation protection relay → trips the circuit breaker during abnormal conditions.

In Electrical & Industrial Systems

Failsafe means:

• Contacts are designed Normally Closed (NC) for safety circuits.

• Loss of control power → trip occurs automatically.

• Control logic designed so that failure = shutdown & not continued operation.

A failsafe system is designed so that any failure (or) loss of power causes the system to move into a safe operating state.
