What is gas group IIA, IIB, IIC?
What are gas groups IIA, IIB, and IIC?
Gas groups IIA, IIB and IIC are hazardous area ratings for electrical equipment for explosive gas atmospheres. They are described in the IEC 60079 framework and assist engineers in selecting equipment based on gas ignition characteristics.

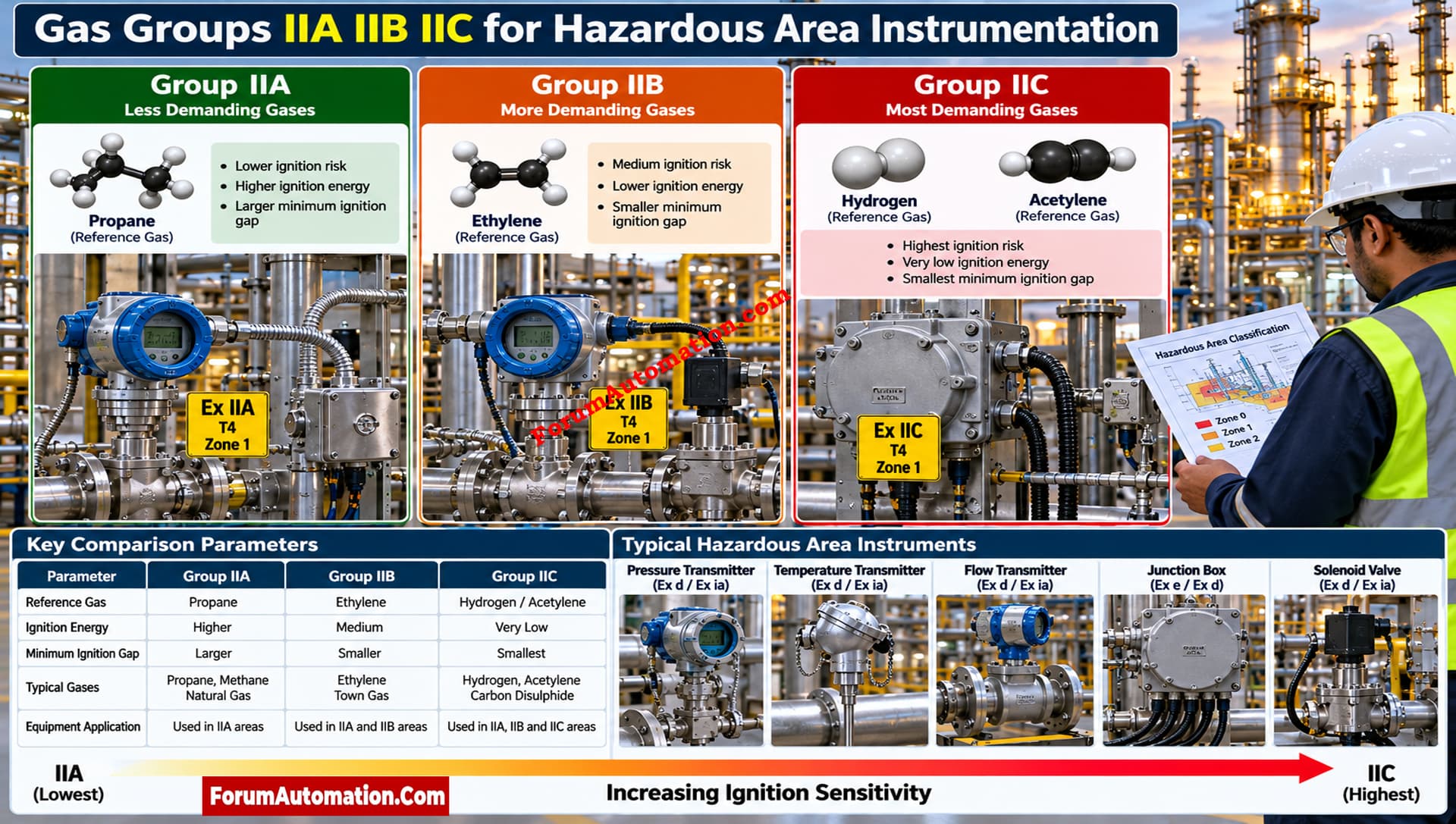

Gas group comparison
Group IIA represents gases with less demanding ignition characteristics. Propane is a common reference gas.
Group IIB represents more demanding gases. Ethylene is a common reference gas. IIB certified equipment can generally be used in IIA areas when other certification requirements are satisfied.
Group IIC represents the most demanding gas subgroup. Hydrogen and acetylene are common reference gases. IIC certified equipment can generally be used in IIA and IIB applications, subject to certification and installation requirements.
Practical instrumentation selection
During EPC design, engineers should identify the hazardous gas from area classification documents before selecting transmitters, junction boxes, solenoid valves, switches, analyzers, and electrical equipment. Equipment marking must match the required gas group.
Do not select equipment using gas group alone. Check zone classification, protection concept, temperature class, ambient conditions, ingress protection, electrical parameters, and certification requirements.
For example, an instrument installed in an area containing hydrogen requires equipment suitable for IIC service. Selecting an IIA certified enclosure simply because it is explosion protected is not sufficient.
Gas grouping affects hazardous area instrument selection, installation, inspection, and maintenance. Verify project area classification and certified equipment marking before field installation. It also supports correct maintenance and inspection decisions across the project lifecycle.
IEC based hazardous area guidance identifies IIA, IIB and IIC according to the ignition characteristics of explosive gas atmospheres. Typical reference gases include propane for IIA, ethylene for IIB, and hydrogen or acetylene for IIC. Equipment certified for a higher subgroup can generally be used in lower subgroups, subject to the complete certification requirements.
