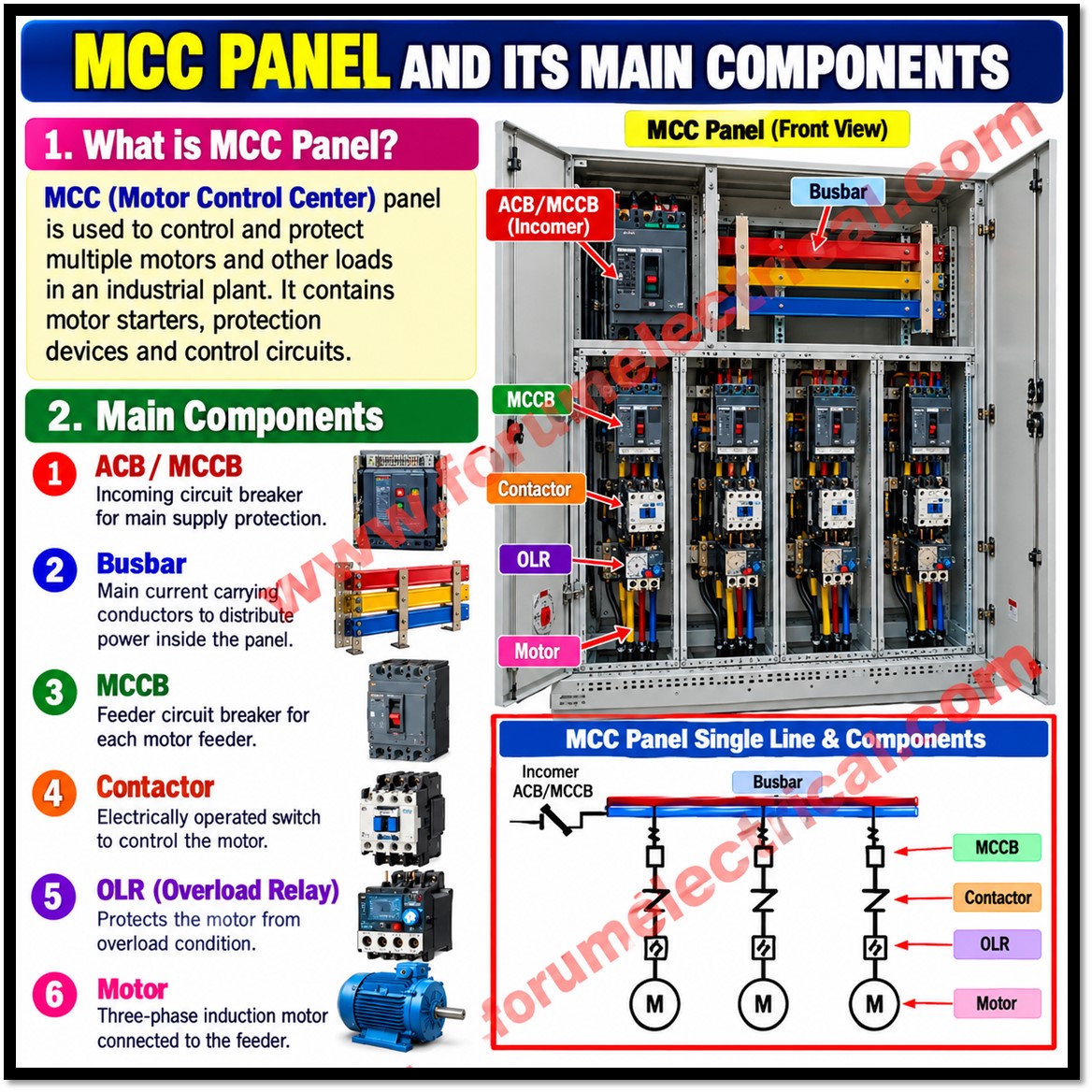

What is an MCC Panel? What are its Main Components?
An MCC (Motor Control Center) panel is an assembly used to control, protect, and distribute power to multiple electric motors and their associated equipment in an industrial plant.
Main Components
| Component | Function |
|---|---|
| Incoming supply and busbars | Receive incoming power and distribute it to individual motor feeders. |
| Circuit breakers or switch-fuse units | Provide isolation and short-circuit protection, as selected for the design. |
| Contactors and motor starters | Switch motors on and off; starters may include direct-on-line (DOL), star-delta, or other methods. |
| Overload relays | Protect motors against sustained overload conditions. |
| Control circuit components | Include push buttons, selector switches, auxiliary relays, timers, and indication lamps. |
| Protection and monitoring devices | May include motor protection relays, meters, current transformers (CTs), and status indicators. |
| Variable-frequency drives (VFDs), optional | Control motor speed where variable-speed operation is required. |
| Enclosure and earthing | Provide mechanical protection and a protective-earth connection. |
Typical Single-Line Arrangement
Incoming supply → Main breaker/isolator → MCC busbars → Individual motor feeders (breaker or fuse + contactor/starter + overload protection) → Motors.
Typical Applications
MCC panels are commonly used in manufacturing plants, water and wastewater facilities, HVAC systems, pumping stations, process industries, and other installations with multiple motors.
Safety Note
Before inspection or maintenance, isolate the relevant supply, apply lockout/tagout (LOTO), and verify absence of voltage. Work should be performed by qualified personnel.
