What is an Earth Pit Test?
Earth Pit Test is a safety test used to measure the earth resistance of an earthing system, ensuring that fault current can safely flow into the ground.
It helps verify that electrical equipment, substations, panels, and lightning protection systems have an effective grounding path.
How it is Performed?

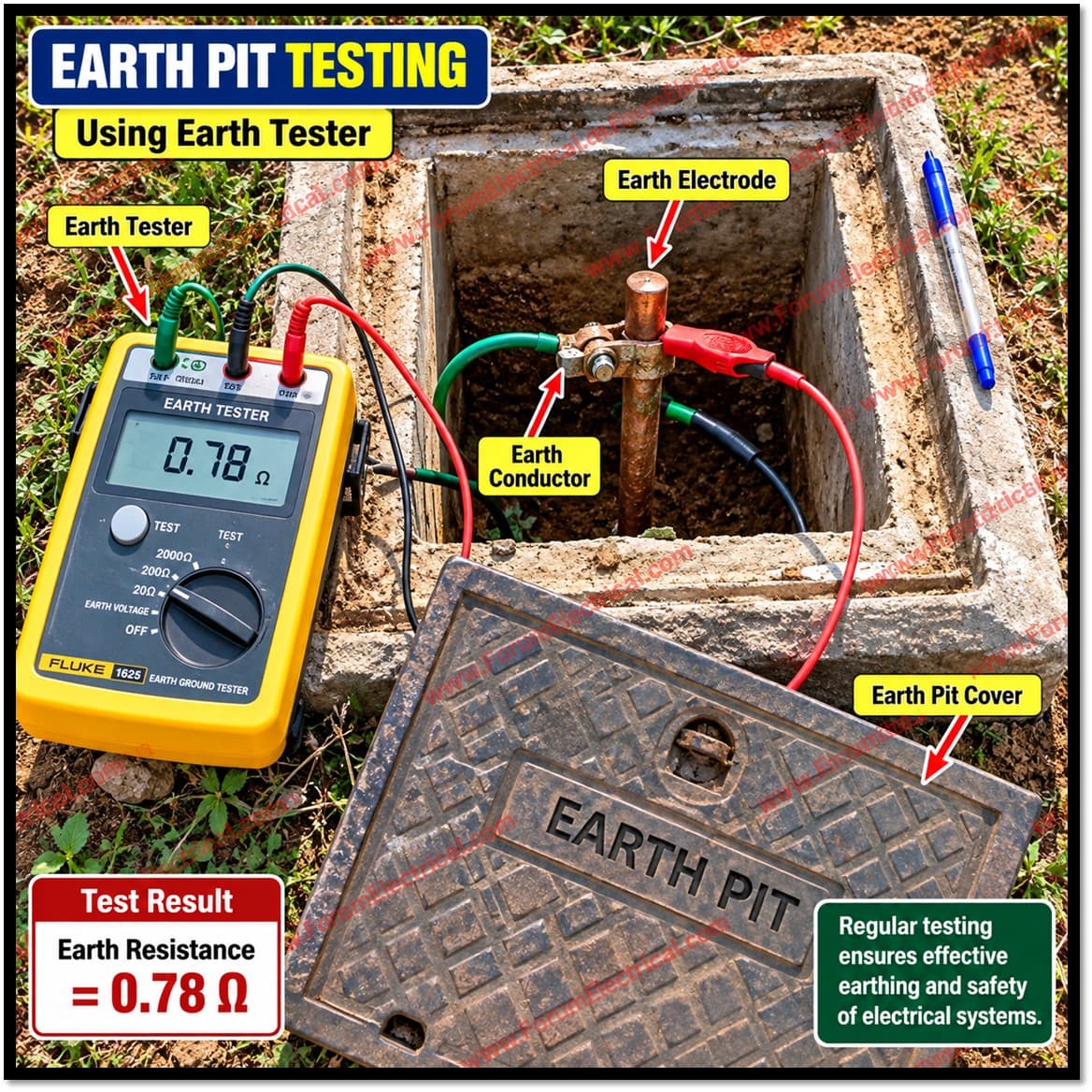

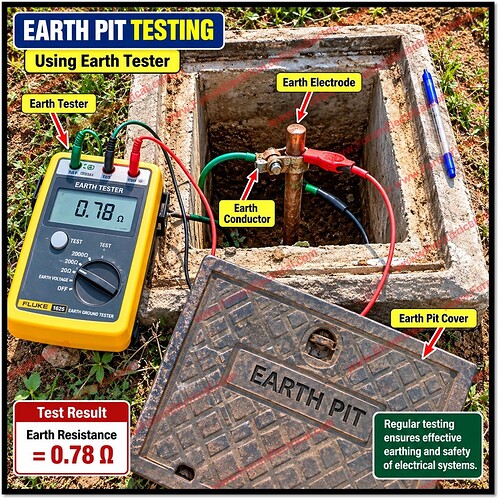

The test is commonly carried out using an Earth Resistance Tester with the 3-point (Fall-of-Potential) or 4-point testing method.
Auxiliary test spikes are driven into the ground, and the resistance is measured in ohms (Ω).
Why it is Important?
- Ensures personnel safety by reducing electric shock risk.
- Verifies compliance with IEC, IEEE, and local electrical standards.
- Detects deteriorated or high-resistance earth pits.
- Improves the performance of protective devices during faults.
Typical Acceptable Values
| Installation | Typical Earth Resistance |
|---|---|
| Residential | Less than 5 Ω |
| Industrial | Less than 2 Ω |
| Substations | Less than 1 Ω |
Regular Earth Pit Testing is essential for maintaining a reliable and safe grounding system throughout the life of an electrical installation.
