What is a Modbus Map?

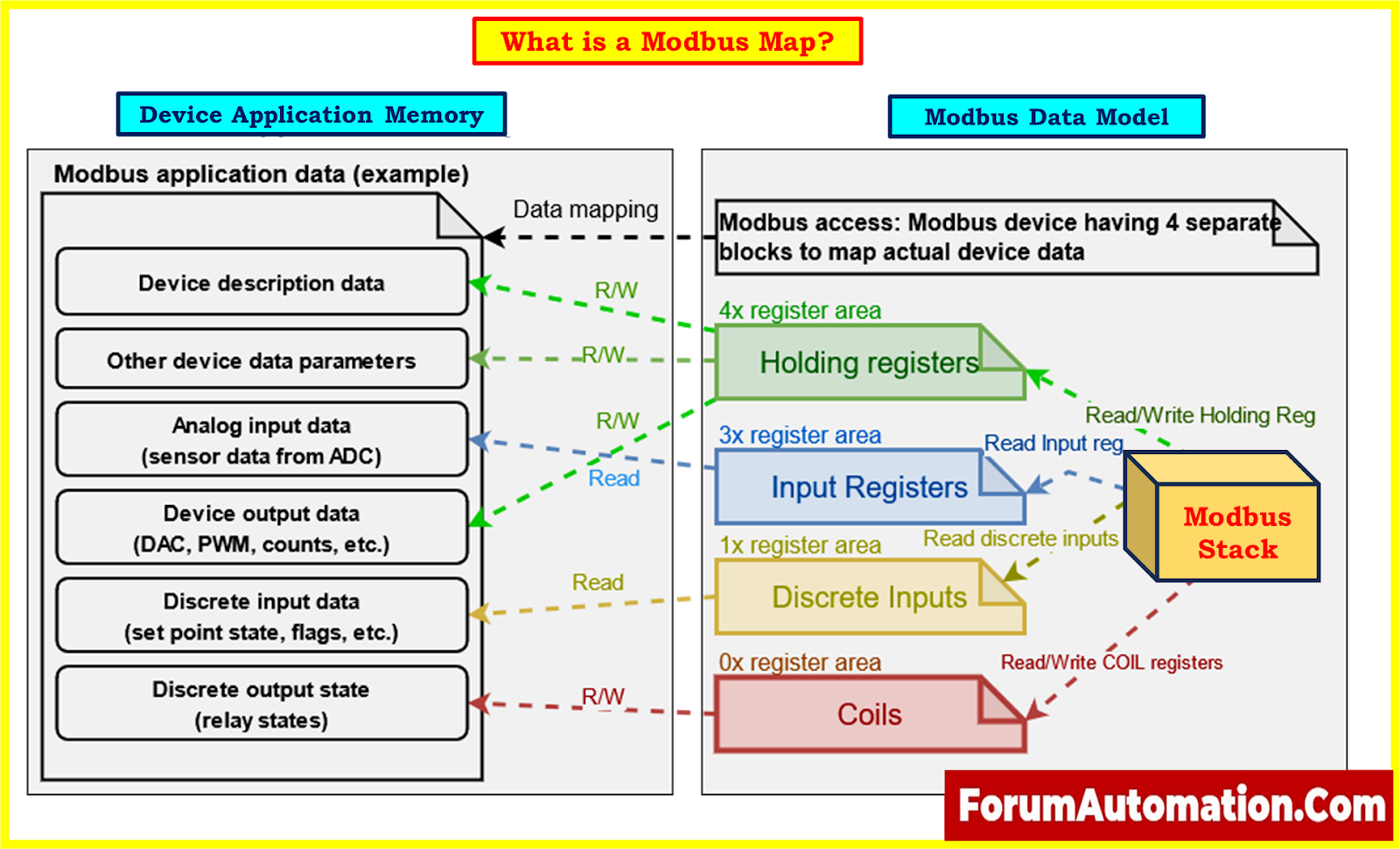

A Modbus Map is a structured reference document or configuration that details how data is organized and accessed in a Modbus-enabled device, such as a sensor, controller, or actuator.
Modbus Map serves as a guide for communicating with the device over the Modbus protocol, specifying the following:
What the Data Is
Describes the type of data available on the device, such as pressure readings, temperature values, flow rates, or status indicators.
Where the Data Is Stored
Indicates the memory locations or addresses in the device’s Modbus registers. These addresses are typically divided into categories:
- Coils (Discrete Outputs): Binary data (on/off).
- Discrete Inputs: Binary inputs (read-only).
- Holding Registers: 16-bit registers (read/write).
- Input Registers: 16-bit registers (read-only).
How the Data Is Stored
Specifies the data formats and configurations, such as:
- Data types (e.g., integer, float, or Boolean).
- Byte or word ordering (e.g., Big-Endian or Little-Endian).
Fixed vs. Custom Maps
This below table highlights the key differences between fixed and custom Modbus maps, aiding in selecting the right approach based on application needs
| Feature | Fixed Maps | Custom Maps |
|---|---|---|
| Definition | Pre-defined Modbus Map set by the manufacturer, not user-modifiable. | Modbus Map that allows users to configure data organization and storage. |
| Flexibility | Rigid structure; data addresses and formats cannot be changed. | Highly flexible; users can define addresses, data types, and formats. |
| Ease of Use | Easier to implement as the map is pre-defined and documented. | Requires setup and programming, which may take more effort. |
| Customization | No customization possible; limited to the manufacturer’s configuration. | Fully customizable to match specific system needs and integration requirements. |
| Application | Suitable for standardized applications where pre-defined mappings suffice. | Ideal for complex or dynamic systems that require tailored data mapping. |
| Documentation | Provided by the manufacturer in device manuals or datasheets. | Defined by the user, typically requiring documentation for reference. |
| Examples | Sensors, actuators, or devices with a simple, fixed functionality. | PLCs, RTUs, or multi-function devices with diverse application requirements. |
Importance of a Modbus Map
Interoperability between devices and systems is guaranteed by the Modbus Map, which gives engineers and developers a clear reference to accurately interpret the data transferred during communication. Programming, debugging, and integrating Modbus devices into more extensive control systems all require it.
