What is a loop folder in instrumentation?
An instrument loop folder is a regulated collection of engineering, installation, testing and commissioning documentation relating to one instrumentation loop. It offers a traceable record of the design, installation, checkout and acceptance into operation of the loop.

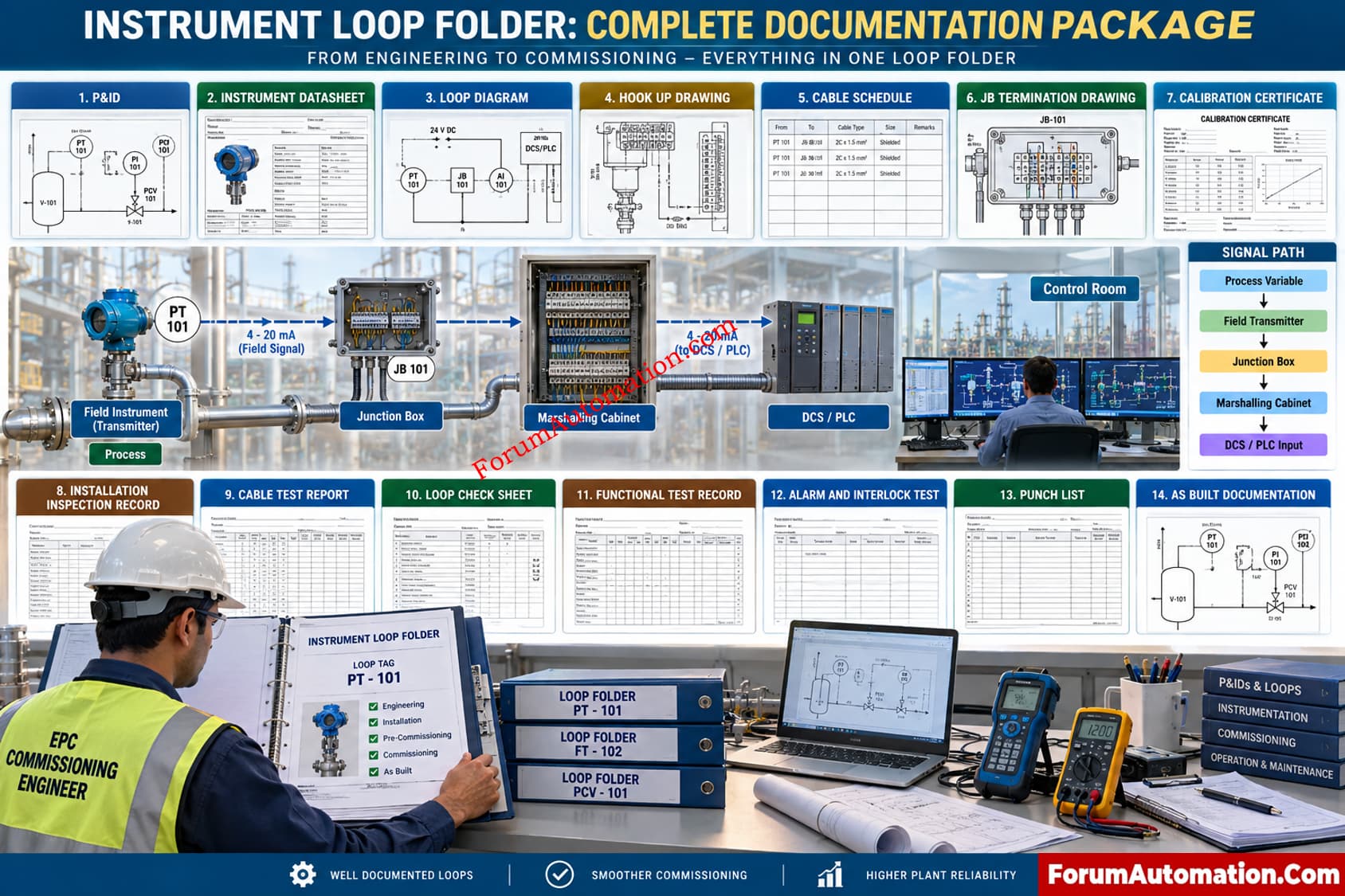

Typical Loop Folder Contents
The exact contents depend on project and client requirements, but an instrument loop folder commonly contains:
- Approved P&ID extract
- Instrument data sheet or specification sheet
- Instrument loop diagram
- Hook up drawing
- Cable and termination information
- Junction box details
- Instrument calibration certificate
- Installation inspection record
- Cable continuity and insulation resistance reports
- Loop check sheet
- Functional test records
- Alarm, trip, interlock, or cause and effect test records
- Punch list and clearance records
Why Loop Folders Matter
The loop folder is utilized by engineers during EPC construction and commissioning to validate that the physical installation matches the approved design. It offers papers needed to verify tag identity, wiring, signal flow, instrument range, calibration status and DCS or PLC configuration during loop inspection.
If a pressure transmitter is not reading correctly in the control room, the engineer can use the loop diagram, calibration record, cable information and loop check sheet to trace the problem from the field transmitter, through the junction box and marshaling cabinet, to the I/O card and finally to the DCS display.
A well kept loop folder enables quality assurance, commissioning handover, maintenance troubleshooting, audits and as built documentation.
In practice, the loop folder is much more than just documentation in projects. It provides documentary confirmation that a complete instrumentation loop has been established, tested, verified and released for operation. It also assists teams to keep track of document updates, approvals, pending punches and acceptance throughout project handover and future maintenance tasks.
