What happens when an AC line touches a DC line?

When an AC line touches a DC line, the result depends on the

  1. Voltage level,

  2. Grounding system,

  3. Circuit design and

  4. Protection devices.

In most cases, it is a dangerous fault condition and can damage equipment.

Possible Effects:

1. Equipment Damage

DC equipment may get damaged because it is designed for constant polarity voltage, not alternating voltage.

AC devices connected to the circuit can malfunction if exposed to DC.

2. Short Circuit / Fault Current

If both systems are energized and interconnected, a high fault current may flow.

This can trip protection devices like MCB, MCCB, fuse, or relay.

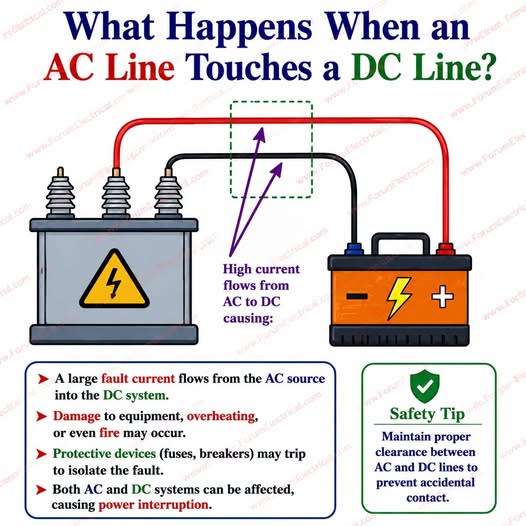

1
1526×526 56.7 KB

3. Overheating

Wires, transformers, rectifiers, batteries, and electronic circuits may overheat due to abnormal current flow.

4. Protection Operation

Circuit breakers, relays, fuses, or protective devices may operate to isolate the fault.

5. Battery/Rectifier Damage

In DC systems (110V/220V battery banks, chargers, UPS), accidental AC contact may damage:

  1. Rectifiers

  2. Batteries

  3. Control circuits

  4. Protection relays

6. Shock and Safety Hazard

Creates a severe electric shock risk and may lead to arc flash or fire.
