What Does 3% LEL Mean on a Gas Detector?

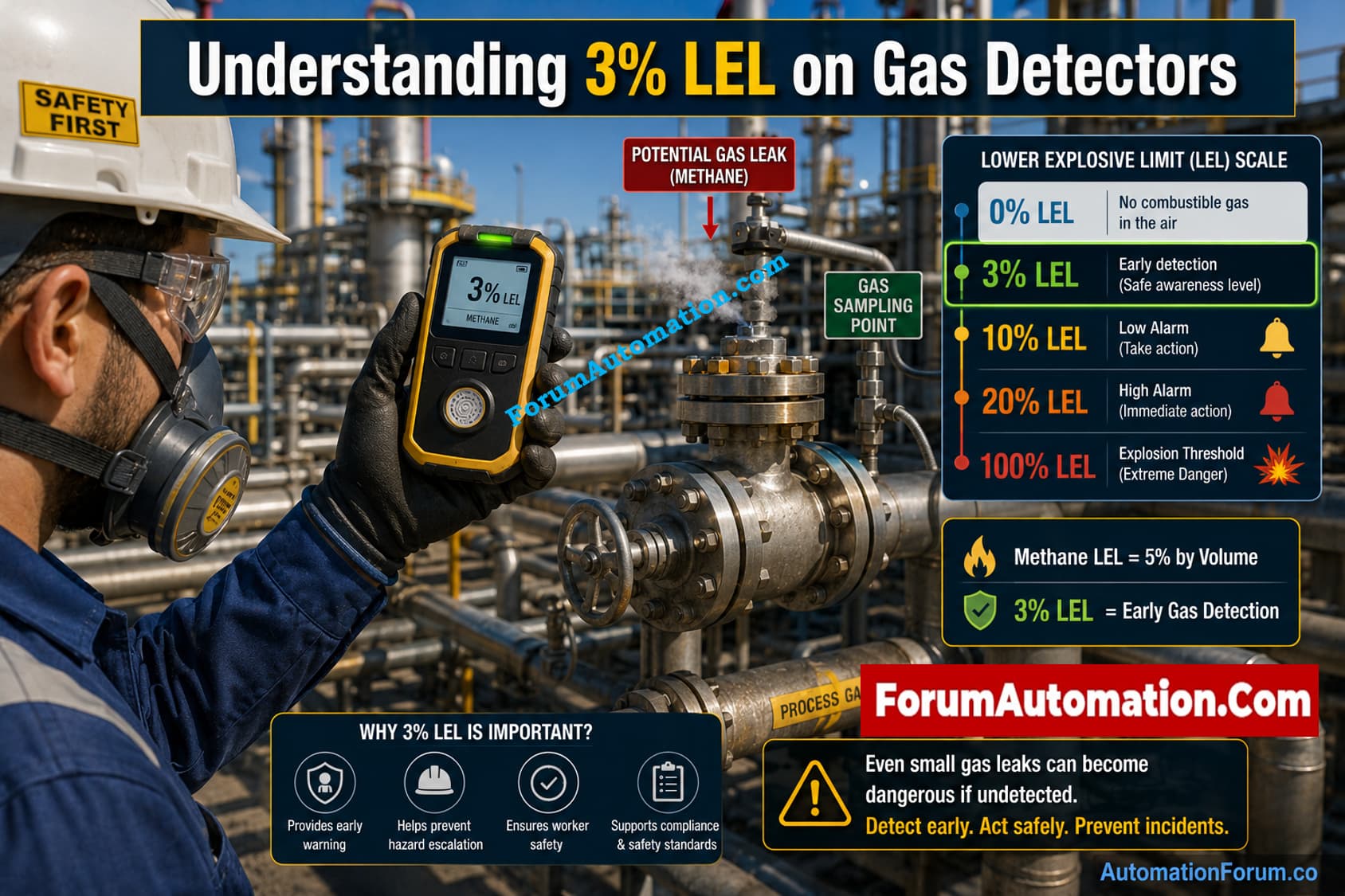

Understanding 3% LEL
A gas detector reading of 3% LEL indicates that the concentration of combustible gas has reached 3 percent of its Lower Explosive Limit (LEL). This is not to say that the atmosphere is 3% gas by volume.
The Lower Explosive Limit is the smallest concentration of a flammable gas at which it will burn if an ignition source is present.
Practical Example
Methane has an LEL of around 5% volume in air.
If a detector measures 3% LEL:
- Gas concentration=3/100 of 5/100
- Actual concentration methane = 0.15% by vol.
This quantity is far below the explosive range but does suggest a measurable gas leak that has to be investigated.
Plant Significance
Typical actions include :
- Look for leaks around equipment.
- Detector calibration check.
- Increase ventilation if needed.
- Keep an eye on the gas levels.
- Alert ops about any abnormal readings.
Many industrial facilities configure alarms at:
- 10% LEL – Low alarm
- 20% LEL – High alarm
- 40–60% LEL – Emergency response, depending on plant standards
Why It Matters
Even a low reading such as 3% LEL should not be ignored as it could be the start of a leak. Early detection of combustible gases by maintenance teams allows problems to be corrected before concentrations become dangerous.
Instrumentation engineers, operators and maintenance workers learn to understand LEL gas detector signals so they can assess risk, troubleshoot effectively and ensure plant safe operations. Industrial facilities depend on accurate readings and dependable monitoring of flammable gases. Regular calibration, correct detector placement and routine inspection are key to ensuring both.
