An Air Circuit Breaker (ACB) protects electrical systems against overloads, short circuits, and ground faults.
Proper protection settings are essential for ensuring system safety, reliability, and selective coordination.

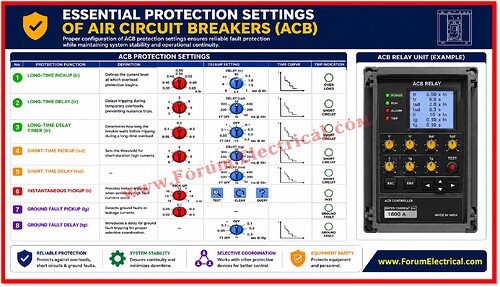

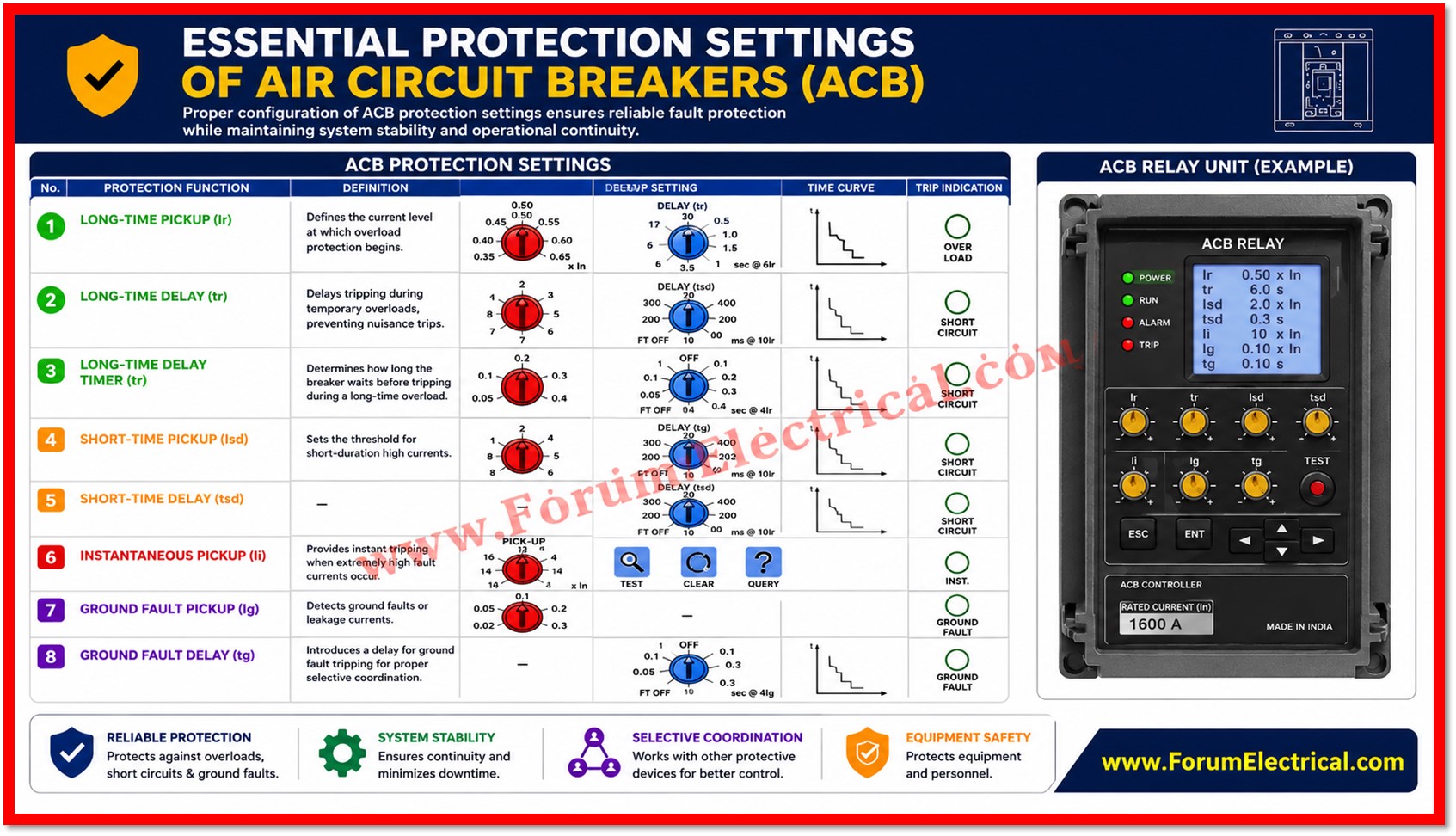

Important ACB Protection Settings
The important ACB protection settings are:
1). Long-Time Pickup (lu)
2). Long-Time Delay (Ir / tr)
3). Short-Time Pickup (Isd)
4). Short-Time Delay (tsd)
5). Instantaneous Pickup (li)
6). Ground Fault Pickup (lg)
7). Ground Fault Delay (tg) :
1). Long-Time Pickup (lu)
Starts overload protection.
2). Long-Time Delay (Ir / tr)
Delays tripping during temporary overloads, preventing nuisance trips.
3). Short-Time Pickup (Isd)
Detects short-duration Overcurrents.
4). Short-Time Delay (tsd)
Improves coordination with downstream protective devices.
5). Instantaneous Pickup (li)
Trips immediately during severe short-circuit faults.
6). Ground Fault Pickup (lg)
Detects earth leakage and ground faults.
7). Ground Fault Delay (tg)
Provides selective coordination for ground fault protection.
ACB settings improve system reliability, protect valuable equipment, and minimize unnecessary power interruptions.
