What is Electrical Connector?
Electrical Connectors are essential components of electrical and electronic systems, serving as the foundation for safe, dependable and efficient wiring.
They act as the link between conductors, components & devices, ensuring that current flows smoothly and without interruption.

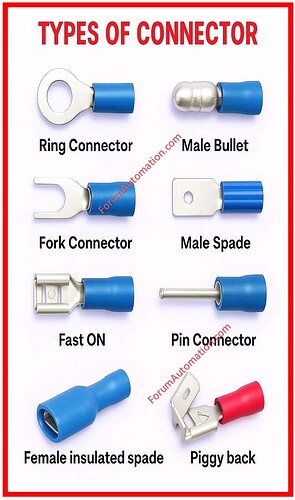

Different connectors are intended for specific uses, making installation, maintenance & troubleshooting considerably easier while also improving safety.
1).Ring Connector
2). Fork Connector
3). Fast-On Connector
4). Female Insulated Spade Connector
5). Male Bullet Connector
6). Male Spade Connector
7). Pin Connector
8). Piggy Back Connector
1).Ring Connector
A ring connector is a circular metal terminal with a hole in the center formed like a ring. It is attached to a stud (or) screw, creating a permanent & vibration-resistant connection.
- Because the screw must be completely removed to disconnect it, ring connectors are commonly utilized in important uses such as
- Grounding,
- Automotive wiring and
- Industrial control panels
where safety and reliability are paramount.
2). Fork Connector
A fork connection (also known as a spade lug) has an open-ended fork shape that enables for easy installation under a screw without entirely removing it.
This design allows for periodic maintenance while yet ensuring a secure connection.
They’re commonly employed in control circuits, terminal strips and switchgear connections.
3). Fast-On Connector
The Fast ON connector, also known as a quick detach termination, is intended to be quick and easy to use.
It supports push-on and pull-off connections, which are commonly used in domestic appliances, lighting fixtures & electronic devices.
These connectors save time during assembly and are particularly beneficial in mass production.
4). Female Insulated Spade Connector
This connector includes a flat spade-shaped termination with an insulating sleeve to prevent inadvertent contact and short circuits.
The insulation also increases grip and protects wires during vibration.
In automotive & home appliance wiring, they are typically used with male spade connectors.
5). Male Bullet Connector
A bullet connection has a rounded male terminal that connects to a similar female bullet terminal, resulting in a detachable joint.
They are simple to connect and disengage, making them ideal for automobile, motorcycle and consumer electrical applications requiring flexibility in wiring.
6). Male Spade Connector
This connector features a flat, blade-like termination that fits into a female spade connector.
It is commonly used for switch connections, appliance wiring and automobile systems.
Male spades enable for rapid push-on connections while ensuring a secure fit.
7). Pin Connector
A pin connector consists of a cylindrical metal pin put into a terminal block (or) screw clamp.
It prevents wire strands from fraying and improves mechanical stability if wires are tightened with screws.
Pin connectors are quite popular in industrial control panels & automation systems.
8). Piggy Back Connector
The piggy back connector is unique in that it allows for two electrical connections to be made at once.
It comprises a male spade and an extension tab, allowing another female connector to be added.
This is beneficial in conditions requiring several connections without the need of additional terminals, such as those found in domestic appliances and control wire.
Depending on the requirements, each connector type gives safety, reliability and convenience of installation.
Choosing the correct connector ensures robust electrical conductivity, reduces the possibility of loose (or) hot joints and simplifies maintenance.
