Type of Motor Protection

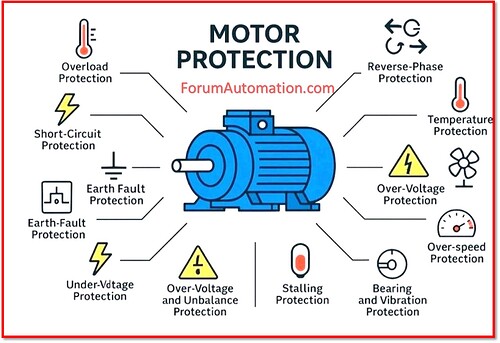

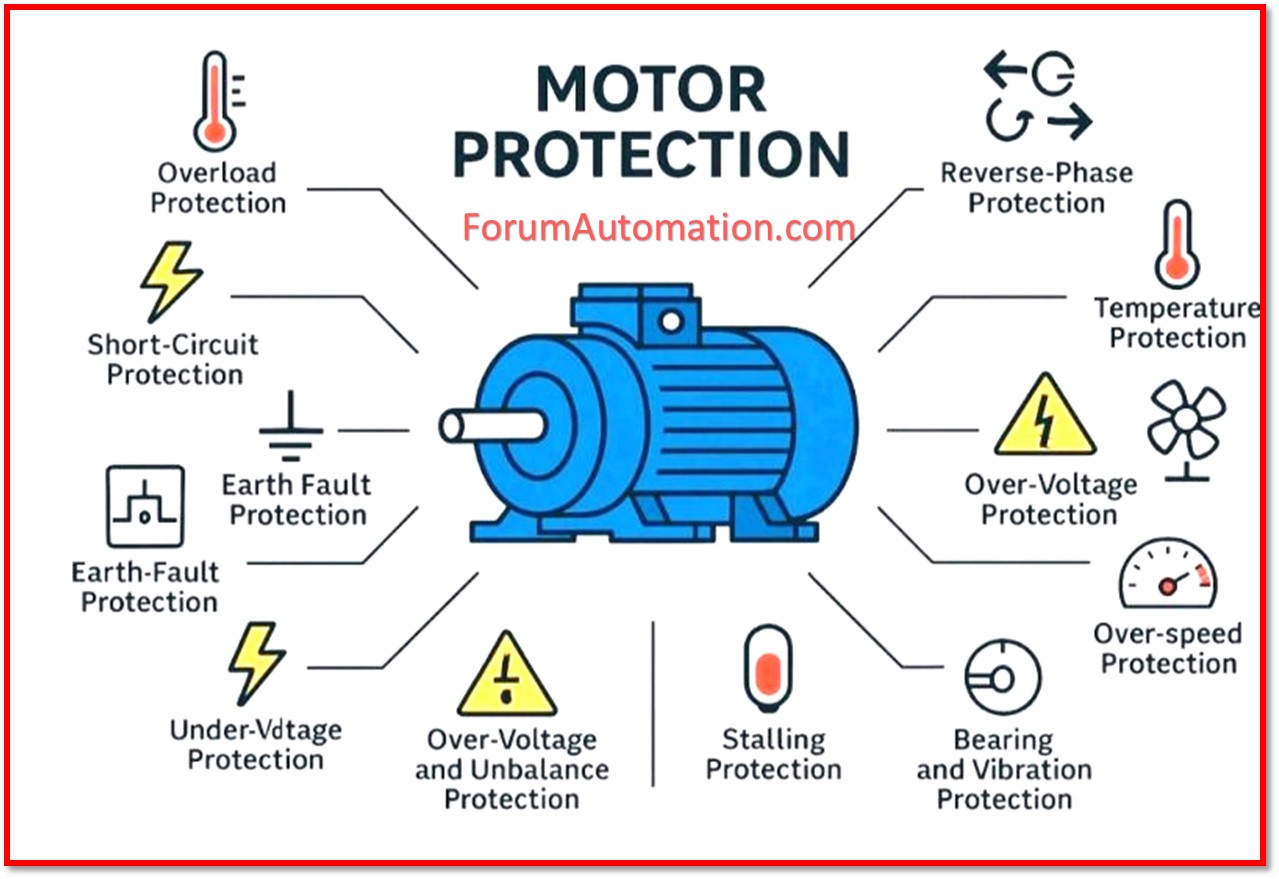

Different Types of Motor Protection are:

  1. Overload Protection

  2. Short-Circuit Protection

  3. Ground Fault (Earth Fault) Protection

  4. Phase Failure (Single Phasing) Protection

  5. Phase Sequence Protection

  6. Under-Voltage Protection

  7. Over-Voltage Protection

  8. Locked Rotor Protection

1. Overload Protection

Protects motor from running at high currents for too long (due to mechanical overload, jam, etc.).

Example: Thermal overload relay.

2. Short-Circuit Protection

Protects motor winding from very high fault currents.

Example: Circuit breakers (MCB, MCCB, fuse).

3. Ground Fault (Earth Fault) Protection

Protects against leakage currents to earth, preventing electric shock and fire.

Example: Earth fault relay.

2
21279×879 147 KB

4. Phase Failure (Single Phasing) Protection

Protects against loss of one phase in 3-phase motors.

Example: Phase failure relay.

5. Phase Sequence Protection

Ensures correct rotation direction and protects against wrong phase sequence.

Example: Phase sequence relay.

6. Under-Voltage Protection

Trips the motor if voltage drops below safe limits, preventing overheating or stalling.

Example: Under-voltage relay.

7. Over-Voltage Protection

Protects against high voltage which can damage insulation.

Example: Over-voltage relay.

8. Locked Rotor Protection

Protects when the rotor cannot turn while current is high (e.g., mechanical blockage).
