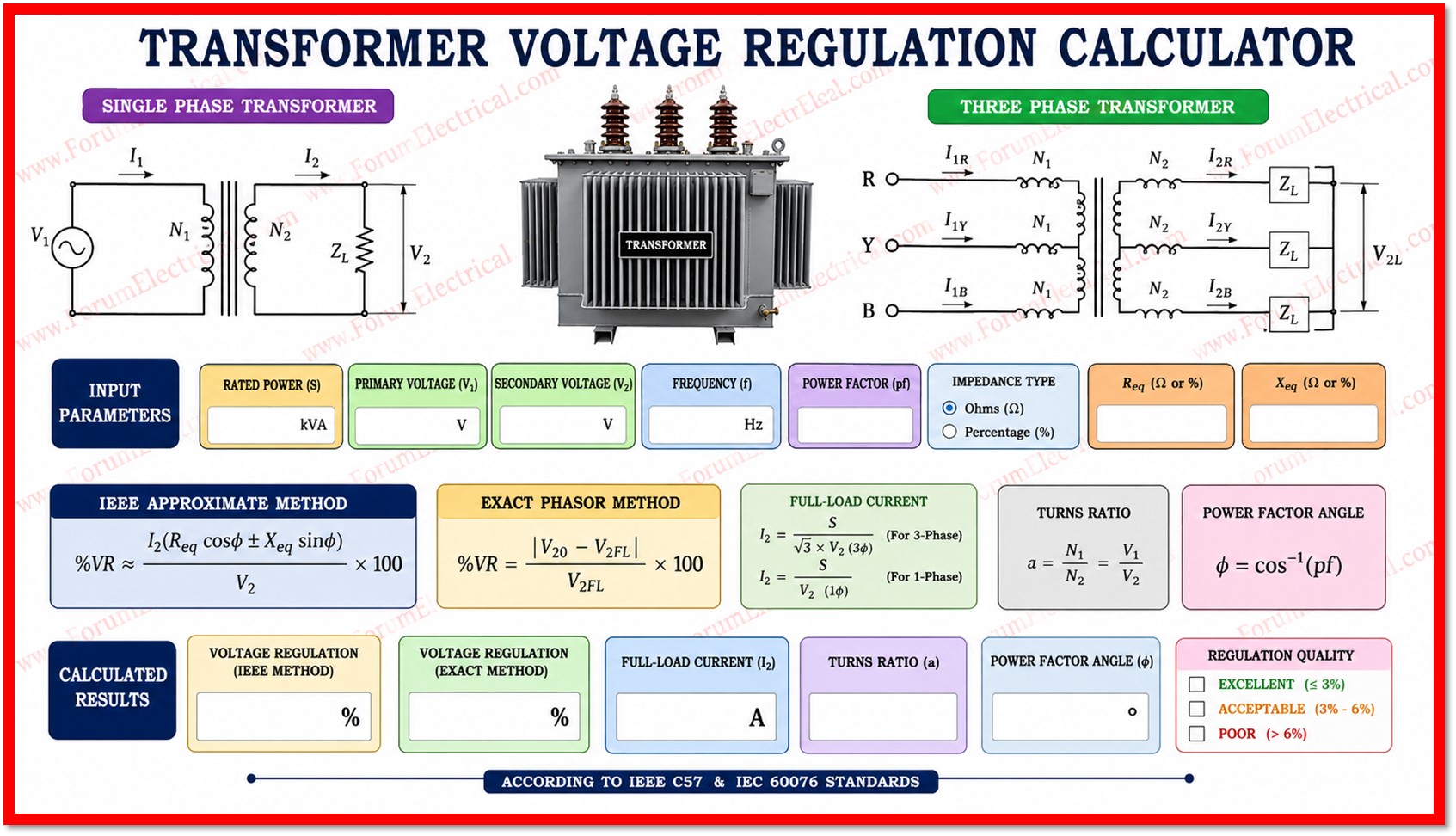

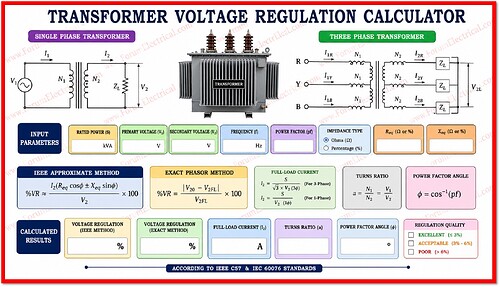

Transformer Voltage Regulation Calculator
The Transformer Voltage Regulation Calculator is an online engineering tool that calculates transformer voltage regulation using both the IEEE Approximate Method and the Exact Phasor Method. It supports single-phase and three-phase transformers, allowing users to enter impedance values in ohms or percentage while automatically calculating full-load current and other key parameters.
Voltage regulation indicates the percentage change in the transformer’s secondary voltage from no-load to full-load conditions. A lower voltage regulation value signifies better transformer performance, improved voltage stability, and higher power quality.
The calculator computes voltage regulation, full-load current, turns ratio, power factor angle, and impedance values, making it useful for transformer design, testing, commissioning, and power system studies. It also classifies regulation quality as Excellent, Acceptable, or Poor, helping engineers quickly evaluate transformer performance.
Designed in accordance with IEEE C57 and IEC 60076 standards, this calculator is ideal for electrical engineers, utility professionals, consultants, students, and maintenance personnel who require fast, accurate, and reliable transformer voltage regulation calculations.
