Vector Group of a Transformer

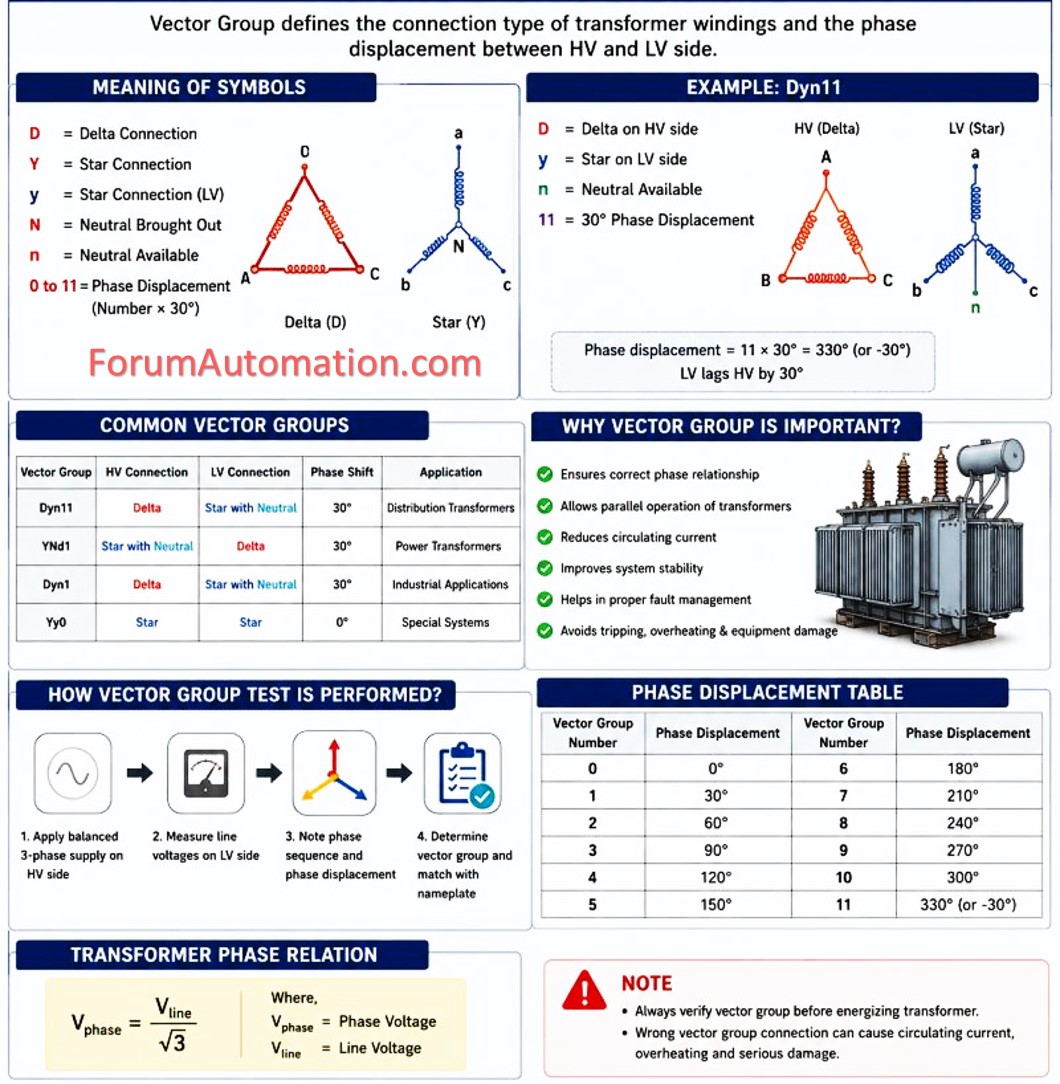

In every power transformer, the Vector Group plays an important function in system stability and safe operation.
It defines:
HV and LV winding connection,
Phase displacement between windings and
Compatibility for parallel operation.
Example: Dyn11
D = Delta connection on HV side
y = Star connection on LV side
n = Neutral available
11 = 30 degree phase shift
Dyn11 is one of the most commonly used vector groups in distribution transformers.
Why Vector Group is Important?
Proper synchronization
Smooth parallel operation
Harmonic reduction
Better fault management
Reliable power system performance
Wrong vector group selection can lead to:
Circulating current,
Protection tripping issues,
Transformer damage and
System instability.
Importance during Commissioning
Before energizing a transformer vector group verification is essential to ensure correct phase relationship and safe operation.
Power systems operate reliably when every phase connection is verified correctly.
