Tan Delta Testing
Tan Delta Testing: Early Warning System
- Before breakdown.
- Before outages.
- Before costly failures.
Tan Delta reveals the truth about insulation health.
What Tan Delta Really Measures?
It tracks dielectric losses inside insulation caused by:
• Moisture ingress
• Oil contamination
• Paper insulation aging
• Partial discharge activity
Think of insulation like a capacitor.
• Healthy → Mostly capacitive, very low loss
• Aging → Leakage current increases
Tan δ = Resistive (leakage) current / Capacitive current
Lower value means stronger insulation.

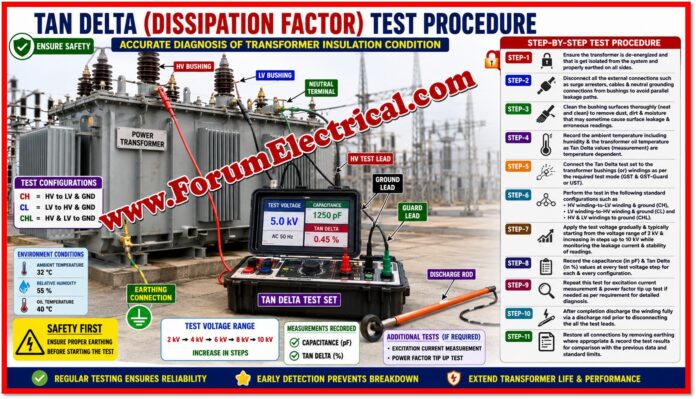

4-Step Testing Workflow
Isolate the transformer and ensure proper grounding
Connect the test kit across bushings
Apply controlled test voltage (typically 2–10 kV)
Measure tan delta and capacitance at different voltages
How to Interpret the Results?
• < 0.5% → Healthy, continue monitoring
• 0.5% – 1% → Degrading, increase testing frequency
• > 1% → Critical, immediate action required
Always compare with past results.
Because insulation failure is not a moment.
It is a trend.
What Tan Delta Helps You Detect?
• Hidden moisture
• Oil degradation
• Early insulation aging
• Partial discharge risk
• Weak internal zones
Transformers rarely fail without warning.
But most warnings are invisible
unless you measure them.
A simple test can deliver:
• Early fault detection
• Reduced outage risk
• Extended transformer life
• Lower maintenance cost
