SF₆ Circuit Breakers
SF₆ circuit breakers are an important part of high-voltage power systems, combining excellent insulation properties with effective arc-quenching capability.

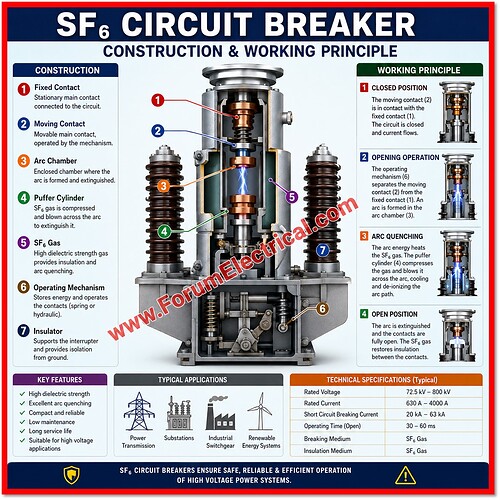

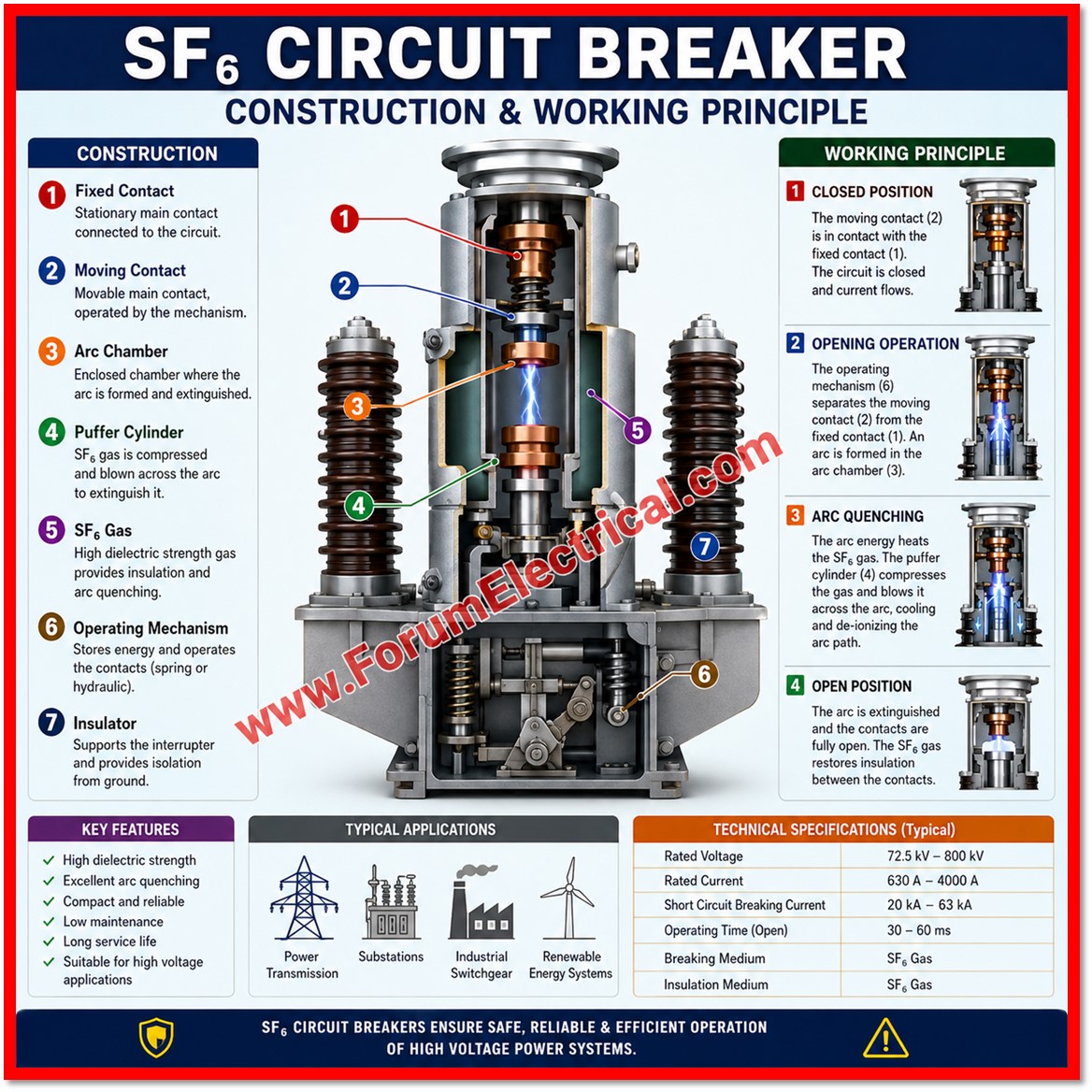

This diagram highlights the construction and working principle of an SF₆ circuit breaker, including the fixed and moving contacts, arc chamber, puffer cylinder, SF₆ gas and operating mechanism.
Understanding these components is essential for engineers working in power transmission, substations, switchgear, and electrical maintenance.
Continuous learning of high-voltage equipment and protection systems helps build stronger technical skills and supports safer, more reliable power-system operation.
