A Megger or Insulation Resistance (IR) Test is a critical QA/QC inspection used to verify the insulation integrity of cables, motors, transformers, switchgear, and electrical panels before commissioning. It helps identify moisture, contamination, insulation deterioration, and potential faults that could lead to equipment failure.
Before the Test
Ensure the equipment is completely isolated and de-energized using proper LOTO procedures.
Verify there is no stored electrical charge and discharge capacitive circuits.
Disconnect sensitive electronic devices if required.
Select the correct Megger test voltage (250V, 500V, 1kV, 2.5kV, or 5kV) according to equipment ratings.
Record ambient temperature and humidity.
During the Test
Inspect the Megger leads for damage and proper connections.

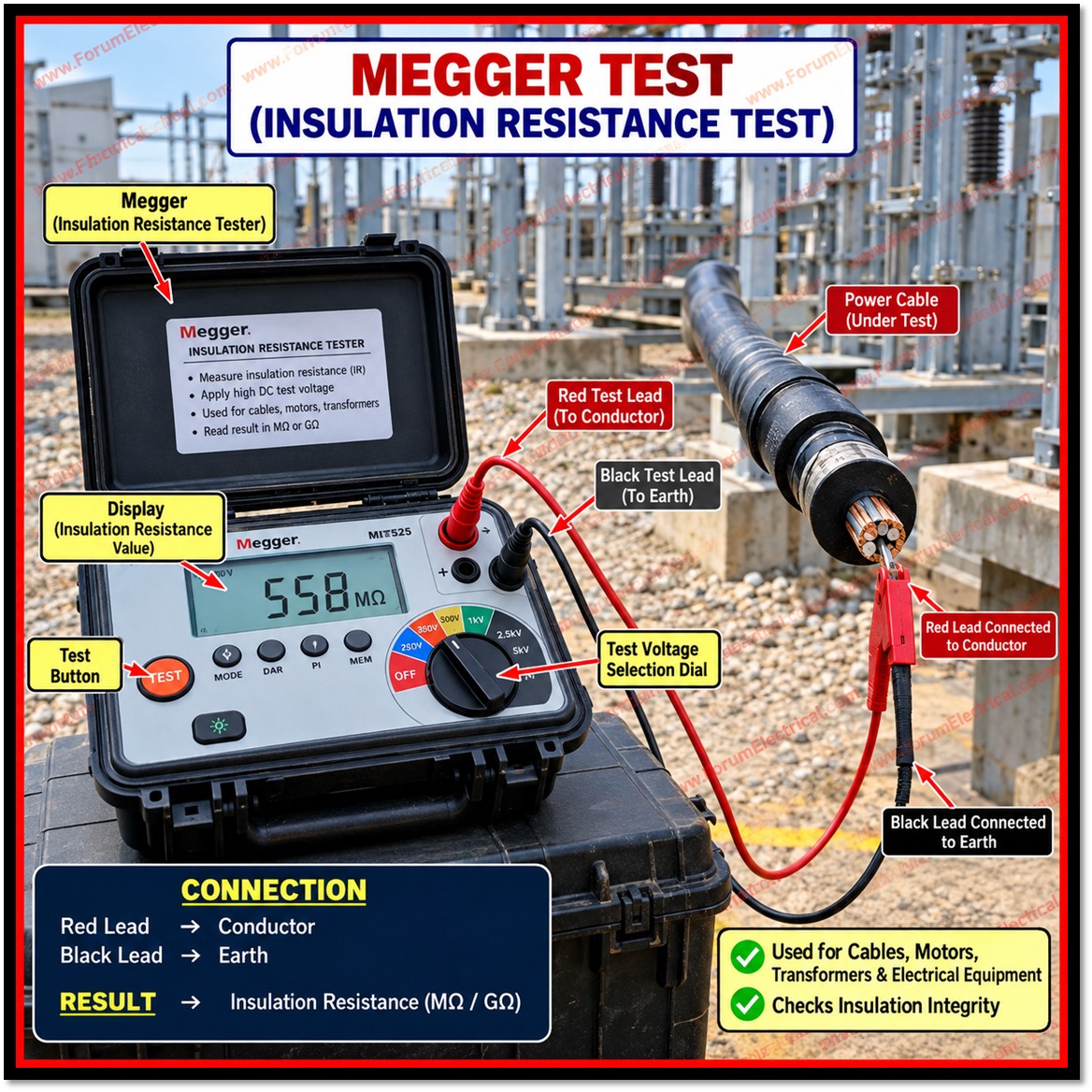

Connect the test leads to the appropriate terminals.
Apply the test voltage for the specified duration, typically 1 minute.
Record insulation resistance values in megaohms (MΩ) or gigaohms (GΩ).
Compare phase-to-phase and phase-to-earth readings for consistency.
After the Test
Safely discharge the equipment before disconnecting the test leads.
Restore all removed connections and protective covers.
Compare measured values with manufacturer recommendations or applicable IEC/IEEE standards.
Document test voltage, duration, readings, temperature, humidity, equipment identification, and tester details.
Mark the equipment as Pass or Fail, and investigate any abnormal or low insulation resistance values before energization.
A well-documented IR Test checklist improves commissioning quality, enhances electrical safety and helps ensure reliable long-term equipment performance.
Megger / Insulation Resistance (IR) Test QA/QC Checklist
| Inspection Item | QA/QC Check | Status |
|---|---|---|
| Work Permit | Valid work permit available | ☐ Pass / ☐ Fail |
| Equipment Isolation | Equipment fully isolated and LOTO applied | ☐ Pass / ☐ Fail |
| Voltage Verification | Confirm equipment is de-energized | ☐ Pass / ☐ Fail |
| Stored Energy | Capacitive circuits discharged | ☐ Pass / ☐ Fail |
| Visual Inspection | No visible damage, moisture, or contamination | ☐ Pass / ☐ Fail |
| Sensitive Devices | Electronic devices disconnected if required | ☐ Pass / ☐ Fail |
| Megger Condition | Test instrument calibrated and in good condition | ☐ Pass / ☐ Fail |
| Test Leads | Leads inspected for damage | ☐ Pass / ☐ Fail |
| Test Voltage | Correct test voltage selected (250V/500V/1kV/2.5kV/5kV) | ☐ Pass / ☐ Fail |
| Temperature | Ambient temperature recorded | ☐ Pass / ☐ Fail |
| Humidity | Relative humidity recorded | ☐ Pass / ☐ Fail |
| Phase-to-Earth Test | Reading recorded | ☐ Pass / ☐ Fail |
| Phase-to-Phase Test | Reading recorded | ☐ Pass / ☐ Fail |
| Test Duration | Voltage applied for specified time (typically 1 minute) | ☐ Pass / ☐ Fail |
| Reading Stability | IR values stable during the test | ☐ Pass / ☐ Fail |
| Equipment Discharge | Equipment discharged after testing | ☐ Pass / ☐ Fail |
| Connections Restored | All disconnected cables restored | ☐ Pass / ☐ Fail |
| Protective Covers | Covers and barriers reinstalled | ☐ Pass / ☐ Fail |
| Standard Compliance | Results compared with IEC/IEEE or manufacturer limits | ☐ Pass / ☐ Fail |
| Final Documentation | Test report completed and signed | ☐ Pass / ☐ Fail |
Typical Insulation Resistance Test Voltages
| Equipment Rating | Recommended Test Voltage |
|---|---|
| Control Circuits | 250 V DC |
| LV Equipment (Up to 500 V) | 500 V DC |
| 500–1000 V Equipment | 1000 V DC |
| MV Equipment | 2.5 kV DC |
| HV Equipment | 5 kV DC or as specified by the manufacturer |
Test Record Summary
| Parameter | Value |
|---|---|
| Equipment Name | __________ |
| Equipment Tag | __________ |
| Location | __________ |
| Test Date | __________ |
| Test Voltage | __________ V |
| Test Duration | 1 Minute |
| Temperature | __________ °C |
| Humidity | __________ % |
| Phase-to-Earth Reading | __________ MΩ/GΩ |
| Phase-to-Phase Reading | __________ MΩ/GΩ |
| Result | PASS / FAIL |
| Tested By | __________ |
| Witnessed By | __________ |
This tabulated QA/QC checklist provides a practical inspection format for pre-commissioning and commissioning IR tests, ensuring consistent documentation and compliance with IEC and IEEE testing practices.
