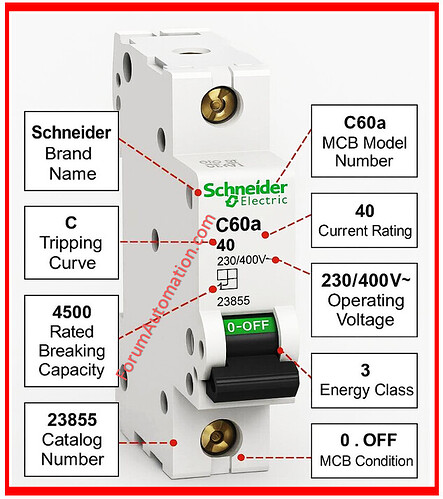

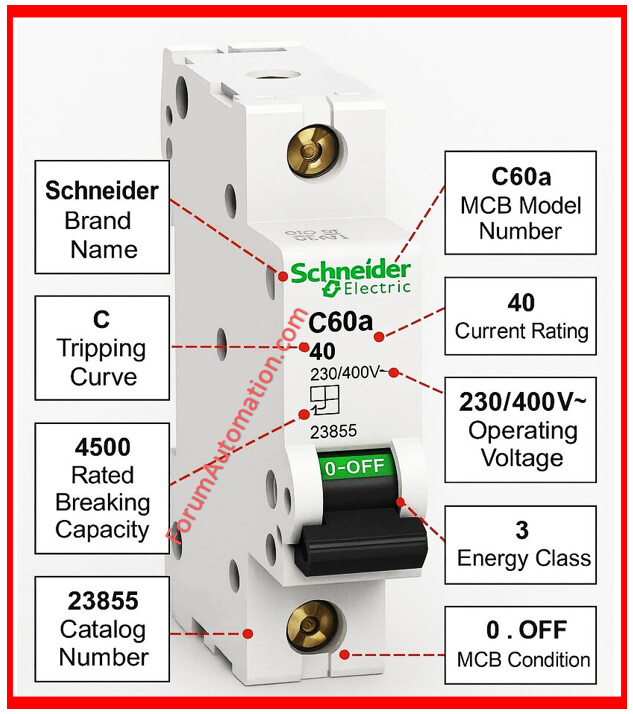

MCB: Symbols Decoding
A simple visual reference to interpreting the codes on a miniature circuit breaker (MCB).
Key details include:
Brand Name: Schneider Electric
Model: C60A
Current Rating: 40A
Trip Curve: Type C
Breaking Capacity: 4500A
Operating Voltage: 230/400V
Energy Class: 3
Ideal for electrical experts and learners who need to rapidly recognize MCB requirements.
