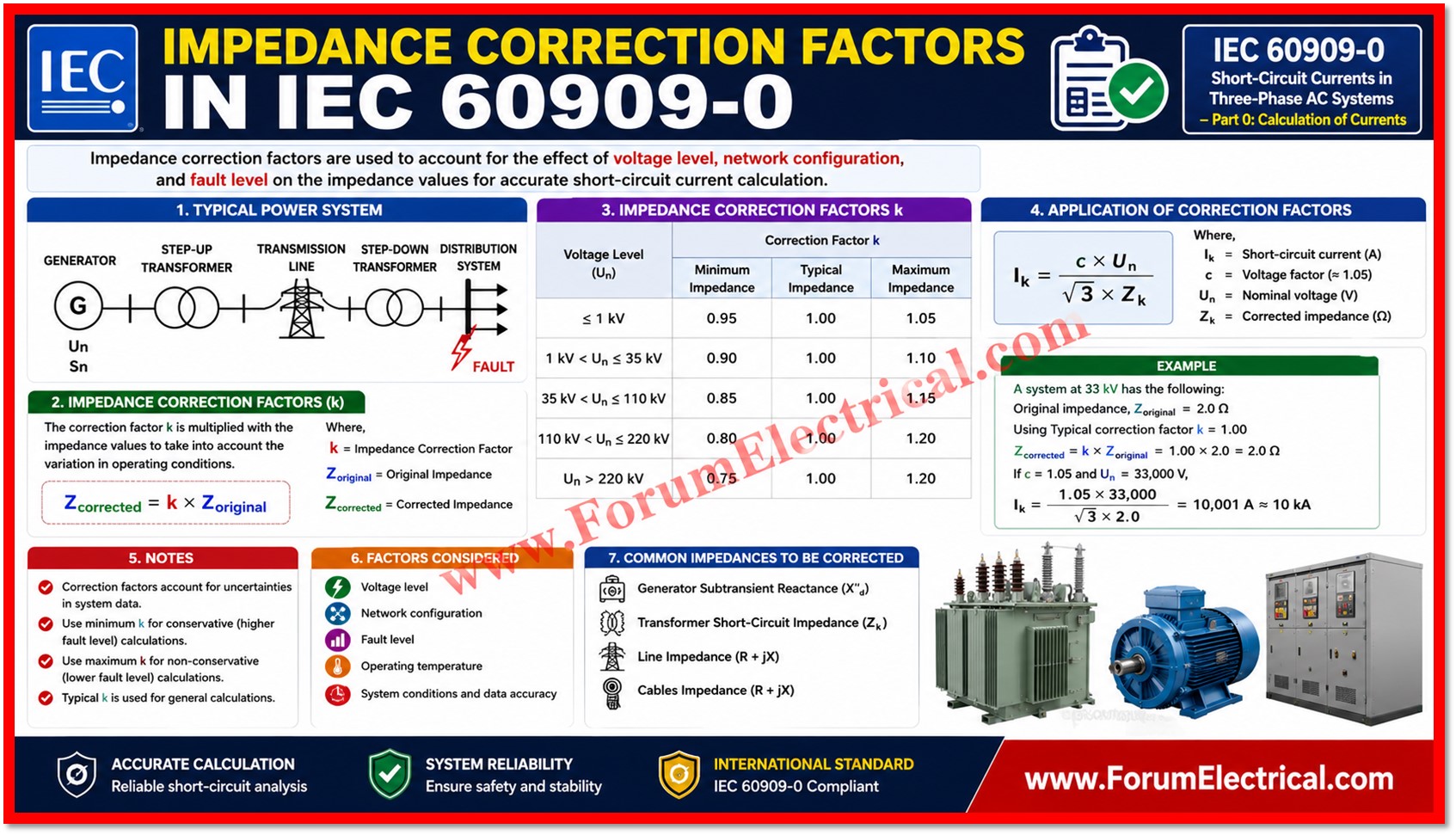

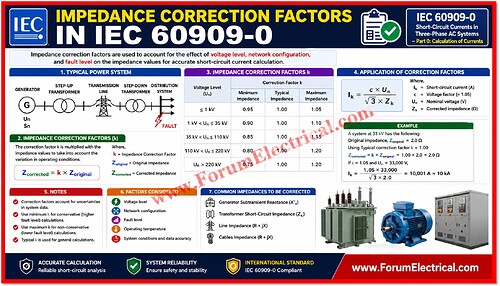

IEC 60909-0 introduces impedance correction factors to improve the accuracy of short-circuit current calculations.
These factors account for the actual operating characteristics of different power system components, ensuring that calculated fault currents closely represent real-world conditions.
Common Impedance Correction Factors
Transformer: Kₜ – Adjusts transformer impedance for short-circuit calculations.
Synchronous Generator: K𝗚 – Corrects generator impedance based on operating conditions.
Power Station Unit: Kₛ / Kₛₒ – Applies correction for generator-transformer unit impedance.
Why it is Important?
Using the correct impedance correction factors is essential for:
- Accurate short-circuit current calculations
- Proper selection and rating of switchgear
- Reliable protection relay coordination
- Safe equipment sizing and system design
- Compliance with IEC 60909 standards
Even a small impedance correction factor can significantly affect calculated fault currents.
Applying the appropriate IEC 60909 correction factors helps engineers design safer, more reliable and standards-compliant power systems.
