How do you select the right circuit breaker for a particular electrical load?
To choose the appropriate circuit breaker for a specific electrical load, first determine the total load current.
The breaker you select must have a current rating slightly greater than the load’s operating current & for continuous loads, it is advised that the breaker be sized at around 125% of the load current.
The breaker’s voltage rating must always meet or exceed the system voltage; otherwise, it will not function safely.
Another key consideration is short-circuit capacity: the breaker must be able to withstand & interrupt the highest potential fault current at the installation position.

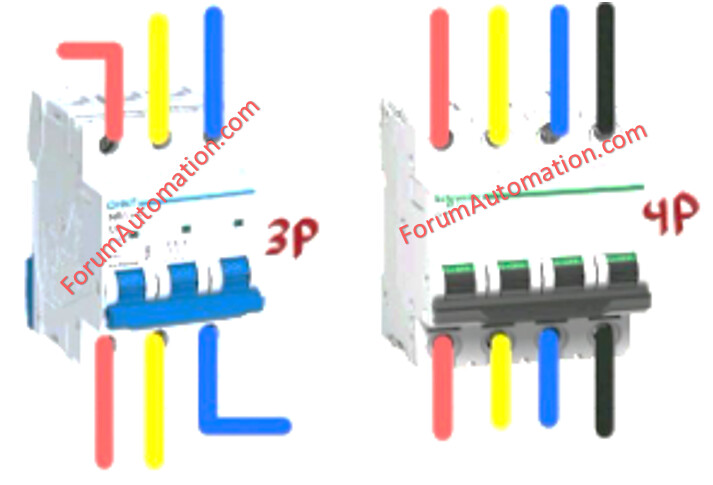

You must also select the appropriate breaker type for the application.
MCBs are often utilized in small residential or commercial circuits, MCCBs in higher current industrial or commercial applications & ACBs (or) medium/high-voltage breakers (such as VCB or SF6) in large-scale power systems.
The tripping characteristics are also important: breakers have distinct curves that determine how soon they trip under fault situations.
Ex:
- B-curve breakers are appropriate for resistive loads like lighting,
- C-curve breakers for inductive loads like motors and
- D-curve breakers for heavy starting equipment like transformers or huge motors.
Finally, think about environmental and application-specific issues such ambient temperature, mounting space, and compatibility with upstream & downstream protection devices.
In summary, selecting the appropriate circuit breaker includes
- Balancing load needs,
- Fault protection,
- Breaker type and
- Operating circumstances to assure both equipment and human safety.
