How to select Circuit Breaker Sizes for SMDB?
Many engineers still oversize (or) undersize breakers leading to:
-
Nuisance tripping
-
Poor protection
-
Unsafe systems

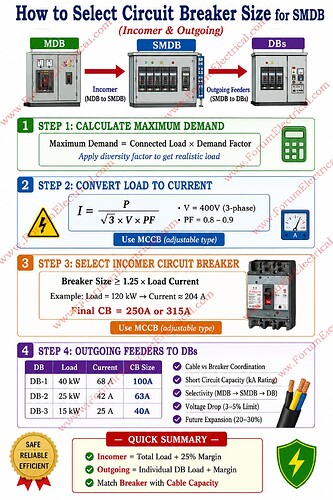

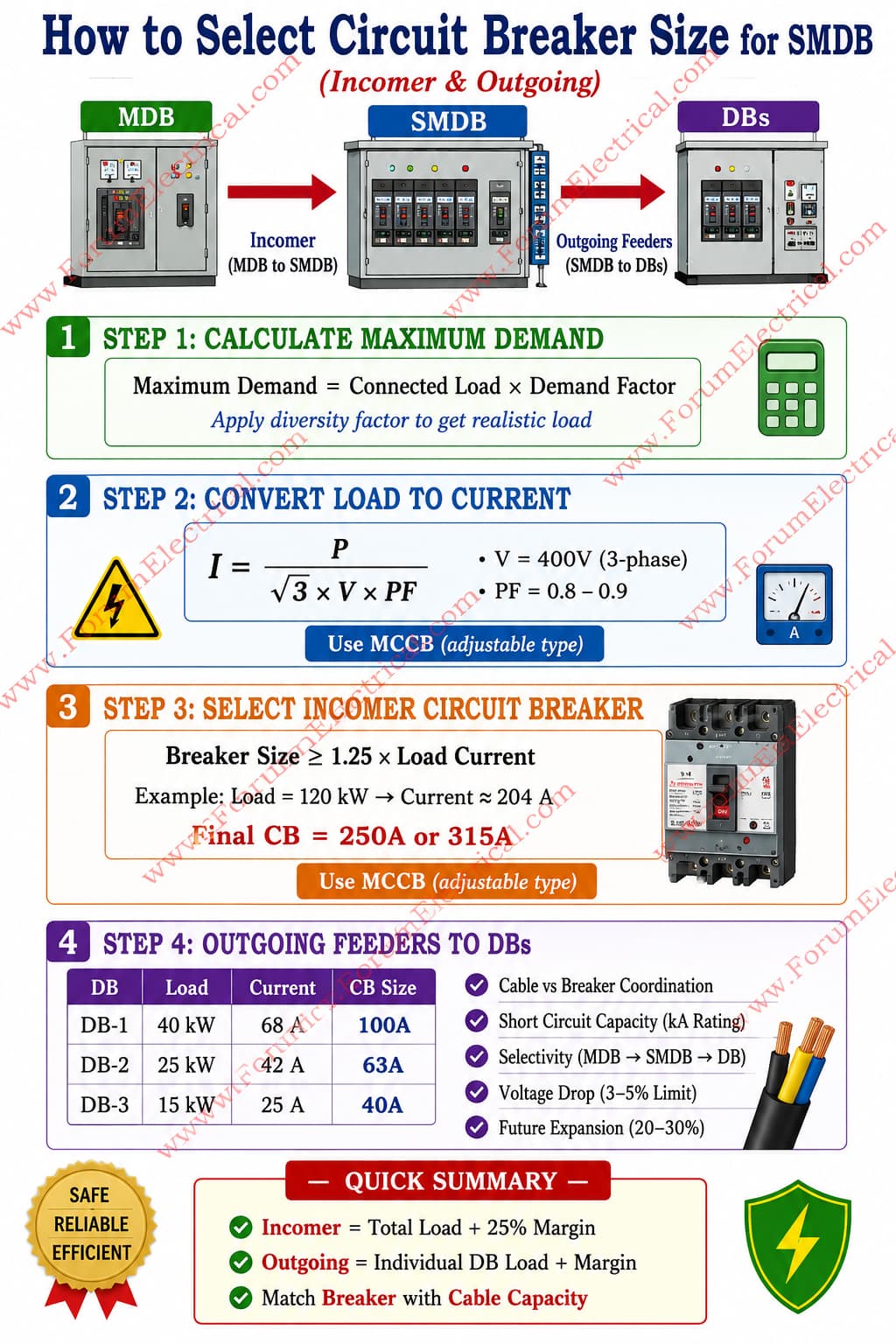

Here is a simple and practical method to selecting the right breaker for SMDB (Incomer & Outgoing):
Step 1: Calculate Maximum Demand
Apply demand/diversity factor and don’t depend on connected load.
Step 2: Convert Load to Current
Use 3-phase formula with proper PF (0.8–0.9).
Step 3: Size the Incomer Breaker
Always add ~25% margin
Use MCCB (adjustable type)
Step 4: Size Outgoing Feeders
Based on individual DB loads
Match breaker with cable capacity
Don’t forget these important checks:
-
Cable vs breaker coordination
-
Short circuit capacity (kA rating)
-
Selectivity (MDB → SMDB → DB)
-
Voltage drop (limit 3–5%)
-
Future expansion (20–30%)
