How to Reduce PLC Cycle Time - A Practical Overview
To make the system more responsive and keep things running smoothly in time-sensitive industrial processes, it’s important to lower the PLC cycle time, which is also called scan time. The scan time is how long it takes a PLC to receive inputs, run the control logic, and change outputs. A shorter scan time means that the system can respond to changes in input more quickly and control more effectively.
Optimizing the logic itself is one way to cut down on cycle time. This means making complicated computations easier, using fewer nested conditions, and not repeating code that doesn’t need to be. Taking off rungs and blocks that aren’t needed can help speed up execution.
Another important method is to keep track of how often specific tasks need to be done. You can relocate time-consuming tasks like communications, data logging, or PID calculations to slower background processes or run them on a schedule instead of every scan.
Using memory well is also important. Use the right data types and don’t use big arrays or structures too often. The PLC can process instructions quicker when the memory footprint is small.

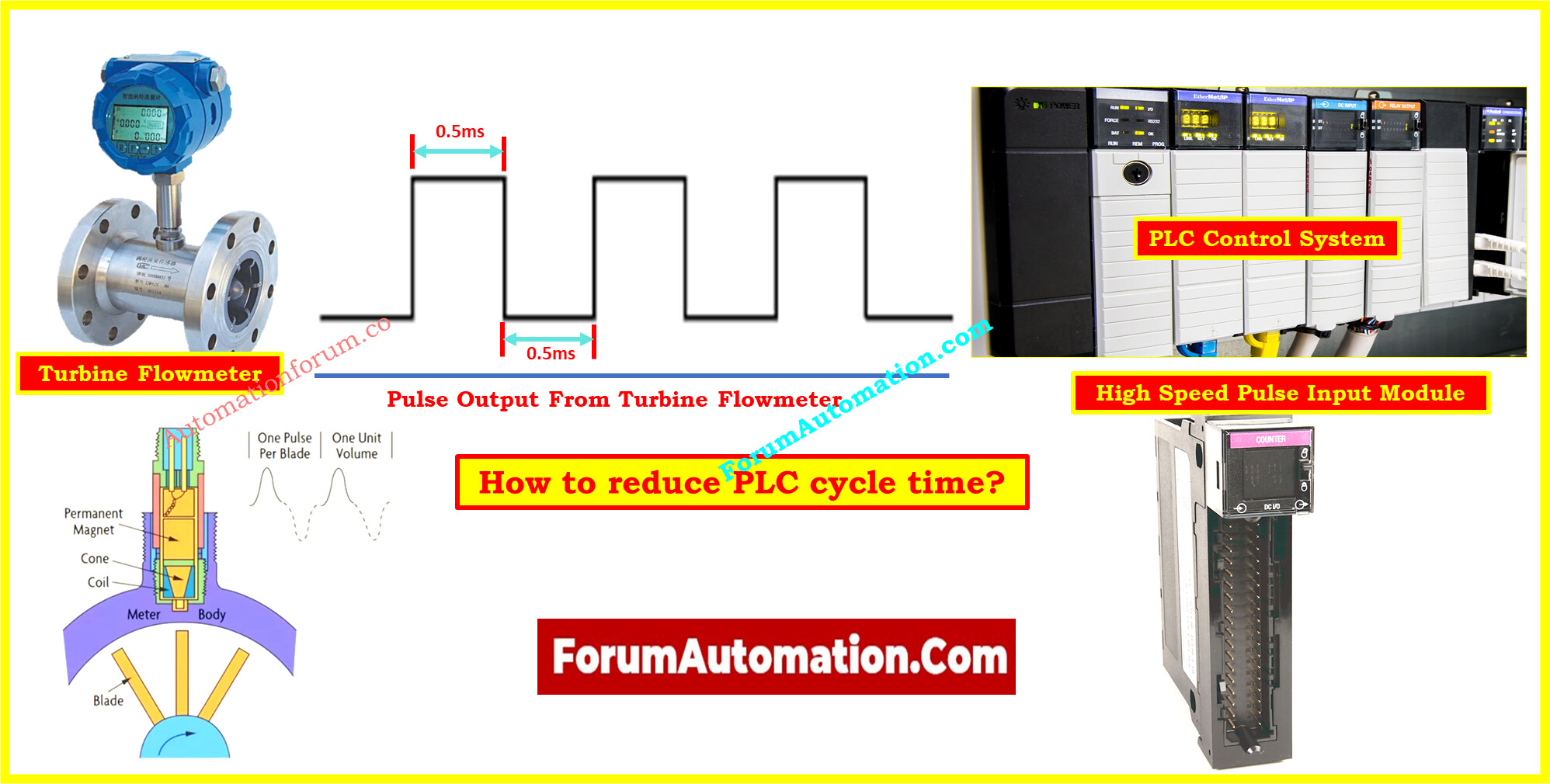

The way the hardware is set up is also important. You can help lighten the load on the processor by turning off I/O channels or modules that you don’t use and employing high-speed modules for operations that need to be done quickly.
Finally, current PLC programming software has profiling features that you may use to keep an eye on scan time. These tools help you find out which areas of the software take the longest, so you can make specific changes to make them better.
You may greatly lower PLC cycle time and improve overall system performance by following these methods: reducing logic, optimizing memory, effectively scheduling jobs, and using system tools.
