How to calculate 4 to 20ma formula?
How to Calculate 4 to 20mA Formula?

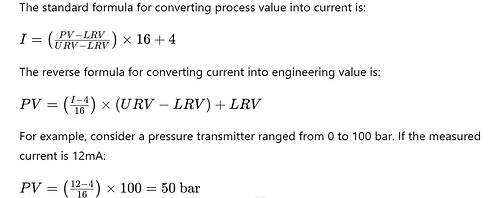

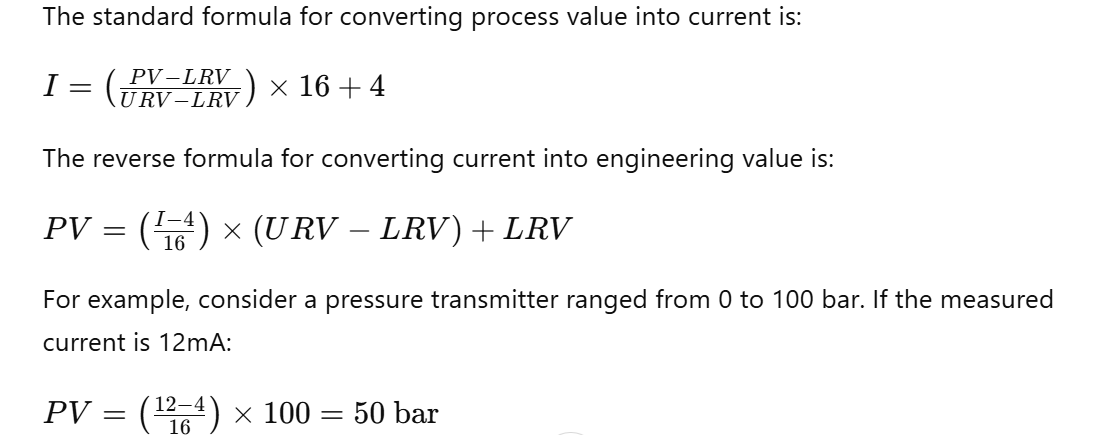

One of the most essential computations in industrial instrumentation and process automation is the 4 to 20mA formula. It turns process variables like pressure, level, temperature, or flow into analog current signals that PLC, DCS, SCADA, and control systems may use. According to this standard, 4mA is the lowest value and 20mA is the highest value. The signal span is always 16 mA. The live zero idea helps maintenance engineers find open loop faults and wiring problems rapidly.
Field checks that are useful include:
- Check the range of the transmitter’s calibration
- Check the PLC’s analog input scaling.
- Use a multimeter to measure the loop current.
- Check the grounding and shielding
- Check the voltage of the power supply
In the process industries, improper scaling often leads to false alarms, unstable PID control, wrong batching, and shutdown trips. Engineers should always check the accuracy of the loop by comparing the current readings of the transmitter with the DCS indications during commissioning activities. Scaling from 4 to 20mA correctly makes processes more reliable, measurements more accurate, troubleshooting faster, and plant safety much better during continuous industrial operation.
