How do you connect an Automatic Transfer Switch (ATS) between grid supply and generator?
What is Automatic Transfer Switch (ATS)?
An Automatic Changeover Switch (ATS) ) is a modern electrical equipment that automatically switches the power supply from the main grid to a backup generator when there is an outage.
This ensures that key loads such as lighting, medical equipment, IT systems & industrial processes operate with minimal or no downtime.

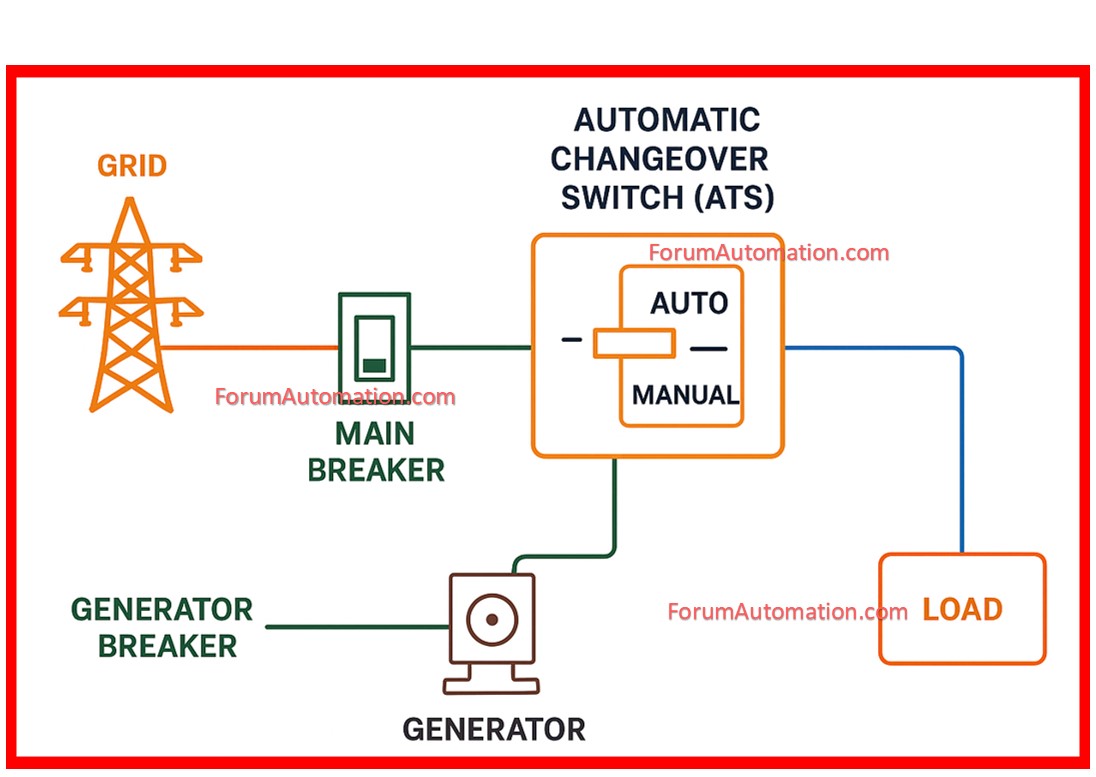

Under normal conditions, the main breaker provides electricity from the utility grid, according to a conventional ATS connection diagram.
The ATS continuously checks the grid’s voltage and frequency. If the ATS detects a malfunction, blackout, or voltage drop, it disconnects the load from grid & signals the generator to start.
Once the generator has stabilized, the ATS transfers the load to generator supply via the generator breaker.
When grid power is restored, the ATS returns the load to the utility source. If configured, it will automatically shut down the generator to save fuel.
Many ATS systems additionally provide Auto/Manual modes, which enable humans to override automatic functioning during maintenance or crises.
This configuration is commonly utilized in residential, commercial & industrial applications, particularly in hospitals, data centers & factories where a consistent power supply is vital for safety and productivity.
Advantages of ATS
-
Smooth transmission between grid & generator
-
Protection against unexpected outages.
-
Automatic generator start and stop
-
Reliable electricity for delicate equipment.
-
Manual control option for maintenance.
