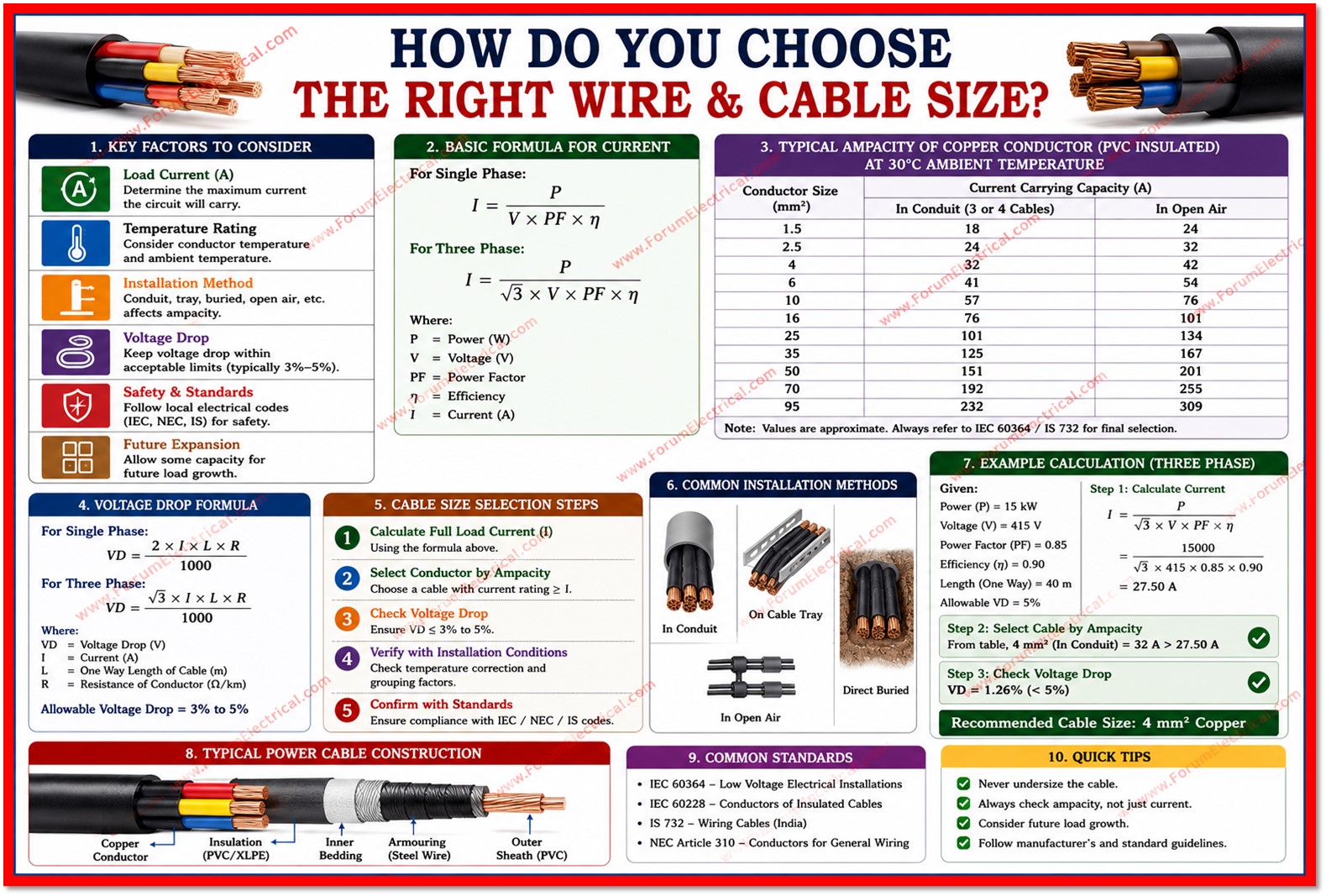

How do you choose the Right Wire and Cable Size?
Why Wire and Cable Sizing Important?
Selecting the correct wire and cable size is essential for ensuring electrical safety, minimizing voltage drop, improving energy efficiency, and preventing overheating.
Proper cable sizing also extends equipment life and ensures compliance with electrical standards.
Key Factors
Choose a cable based on the load current, operating voltage, cable length, installation method, ambient temperature, grouping of cables, insulation type, voltage drop limits and short-circuit withstand capacity.
Always apply the appropriate derating factors for actual site conditions.
Applicable Standards
Use recognized standards such as IEC 60364, NEC, BS 7671, or AS/NZS 3008 and refer to manufacturer ampacity tables to select the correct conductor size for your application.
Final Check
After selecting the cable, verify that it meets current-carrying capacity, voltage drop, fault current, and mechanical strength requirements to ensure reliable and long-lasting electrical performance.
