How Do 3rd, 5th and 7th Harmonics affect Power Systems?
Not all harmonics affect a power system in the same way.

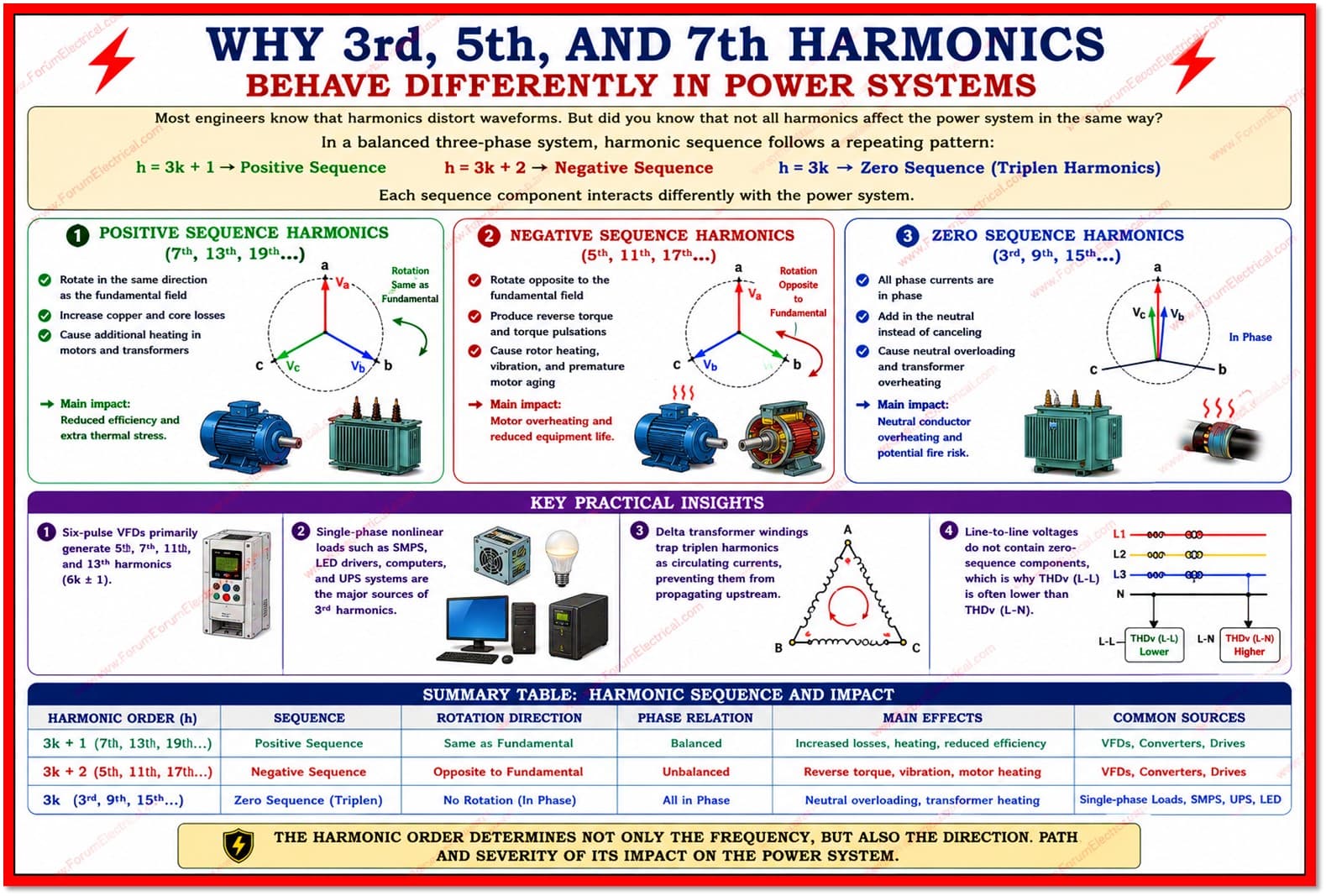

In a balanced three-phase system, 5th harmonics create a negative sequence that produces reverse torque, motor heating, vibration, and reduced equipment life.
The 7th harmonic is a positive-sequence harmonic that rotates with the fundamental field, increasing copper and core losses while reducing efficiency
The 3rd harmonic is a zero-sequence (triplen) harmonic that adds in the neutral conductor instead of canceling, causing neutral overloading, transformer overheating, and potential fire hazards.
Six-pulse VFDs mainly generate the 5th, 7th, 11th, and 13th harmonics, while single-phase nonlinear loads such as LED drivers, SMPS, UPS systems, and computers are major sources of 3rd harmonics. Understanding harmonic behavior is essential for improving power quality, protecting equipment, and designing reliable electrical systems based on standard IEEE519.
