Data Center Electrical Power Distribution

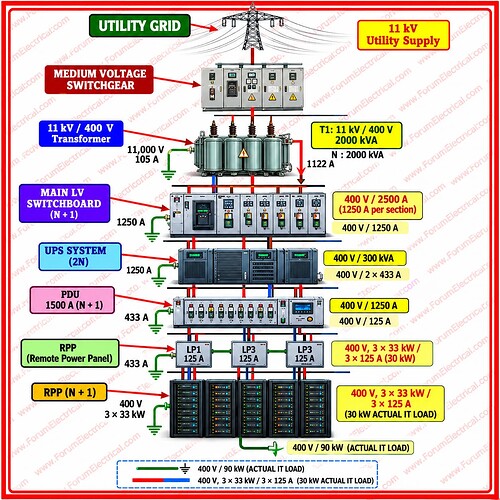

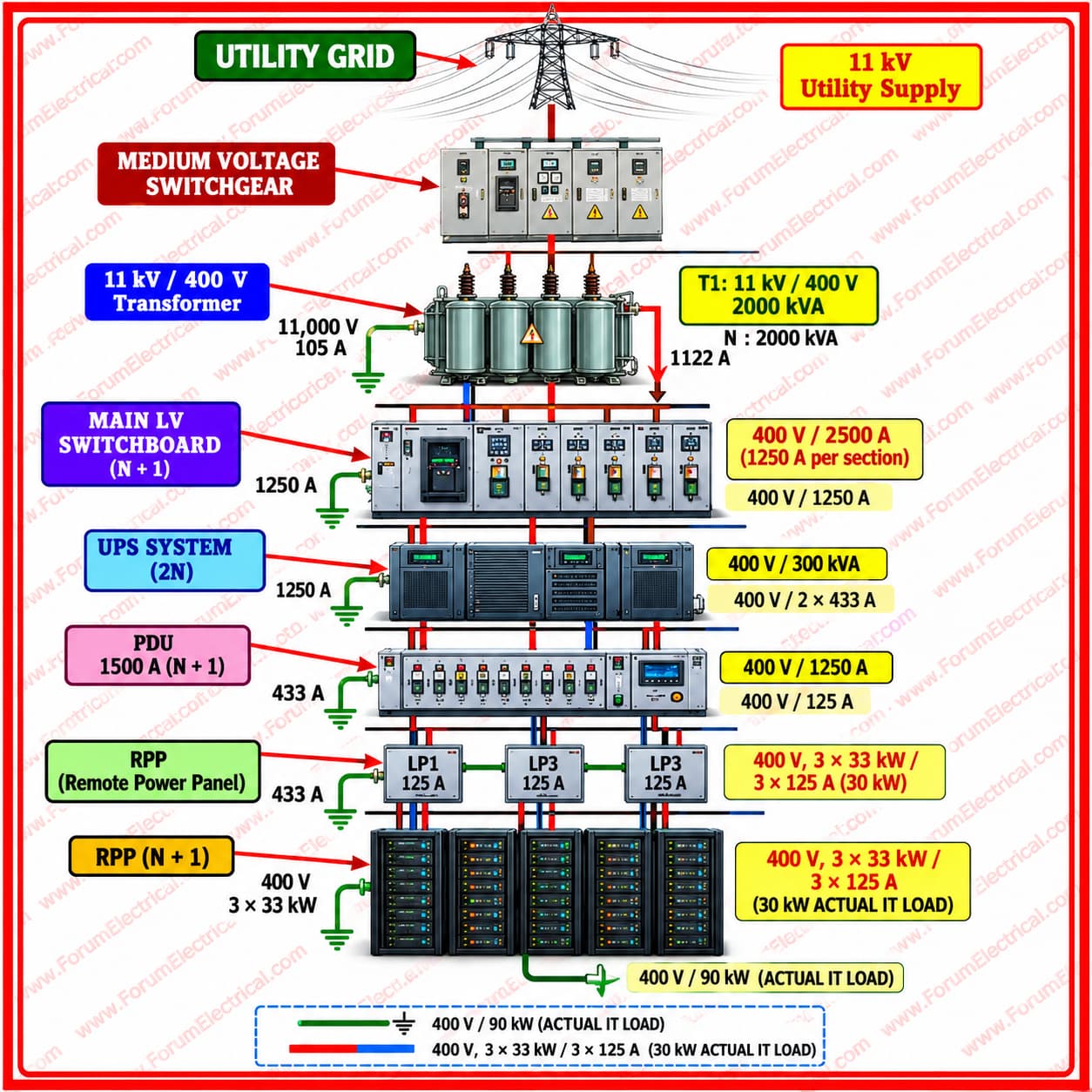

A simplified Single-Line Diagram (SLD) illustrating the electrical power distribution architecture of a data center, from the utility grid to critical IT loads.
The power path includes:
• Medium Voltage Switchgear
• 11 kV / 400 V Transformer
• Main LV Switchboard
• UPS System
• Power Distribution Unit (PDU)
• Remote Power Panels (RPPs)
• IT/Server Loads
The diagram highlights the importance of reliable, redundant and continuous power distribution for critical data center infrastructure.
