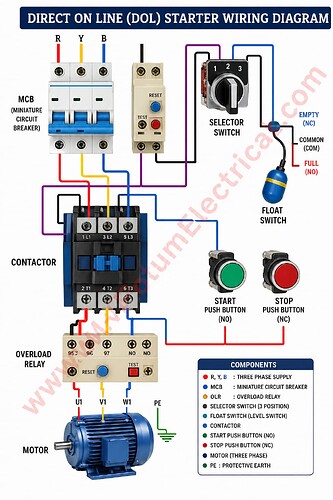

Automatic Water Pump Control Circuit
This circuit automates the control of a water pump using
Float switches,
Contactors and
Protective devices.
It ensures the pump operates only when the tank is empty and stops automatically when full, improving efficiency and safety.
The setup includes:
Circuit breakers (Q1, Q2) for protection
Selector switch (manual/auto) for flexible operation
Contactor for motor control
Float switch for level detection
Indicator lamps showing pump status
A perfect example of automation, control logic, and protection in motor-driven systems, widely used in industrial and domestic applications.
