1. Wire calculator
Electricians mostly use a gauge to select the size of the wire, by using this app we can select the wire that is required for certain applications. In order to do that, we must give some details to this app like input source voltage, current, and distance, and this wire gauge calculator will calculate the needed wire size in AWG and circular mils. By using this app we can do certain calculations, it has a wire gauge calculator, AWG to mm calculator, SWG to mm calculator, and voltage drop calculator. This app can calculate the voltage drop and in order to do this, it needs certain details like wire type, wire length and diameter, and the voltage level

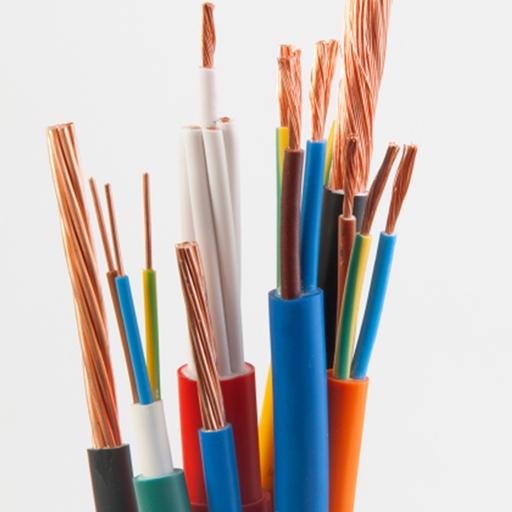

2. Cable size calculator
This app will help us to select the suitable cable size that is needed for an electric circuit. This app will be very useful for electrical engineers, electricians, and designers. It can also provide the voltage drop in a circuit. This app can be operated offline so no need to worry about network coverage. With the help of this app, we can select wires and LV cables. This will allow us to select the required cable for our application, it could be high, low, or medium voltage cable according to our application.
3.Cables current capacity(IEC60364)
By using this app we can calculate the maximum current carrying capacity for all types of low voltage cables. The values that are shown by this app will be complying with international standards. This app would be useful for all methods of installations whether the conductor is copper, aluminum, or PVC insulation, and for single-phase and three-phase systems.
4. Wire gauge calculator
We can determine the SWG number of the wire that is meant to carry a given value of current, and it is mostly used in transformers. In the transformer winding, we need to find out the SWG number of the required wire for a given value of current.
5. Voltage drop/ Cable size/Short circuit Calcs
By using this app we could calculate the voltage drop, cable size, and short circuits. This app also contains cable specifications. This app consists of voltage drop and short circuit tables. We can also determine the voltage drop of single-core and multicore LV cables of copper and aluminum. This app is very suitable for electricians and students, selection of cable can be done by using this app
6. Electrical cable sizing
The calculation is done according to standard electrical relations and it will also be useful to size cables for single-phase systems, three-phase systems, and for DC systems. This app is applicable for copper and aluminum conductors, PVC or XLPE insulation types. It can be used for cores like 2C, 3C, 3.5C, or 4C. It can be used for cables whether it is catering to resistance or reactive load. In this app, the calculation is done by the overall de-rating factor, power factor, and the permissible voltage drop over the cable length.
7. Electric lines calculator
This app will be really useful for electricians, with the help of this app we can get results on cable sizing, transformers, and reactive power compensation. With the help of this app, we can do cable sizing, low voltage power line calculation can be done. Wire sizing is done according to the maximum current density, maximum voltage drop, and according to the current and short duration.
