Energizing a 66kV transformer is an essential procedure in power systems that ensures consistent electricity transmission and distribution.
Proper energization methods reduce dangers including inrush current, insulation failure & equipment damage.
Before charging a transformer , engineers must do pre-energization checks, switchgear inspections & safety verifications.
The thorough transformer commissioning procedure not only ensures equipment safety but also improves power system stability, reliability, & efficiency.

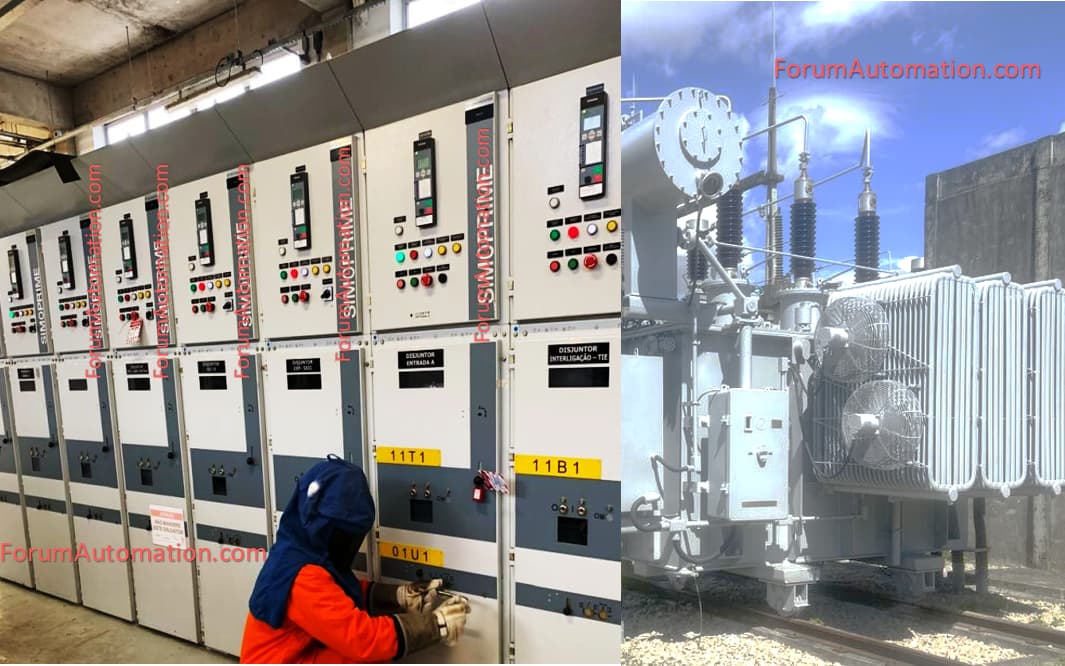

66kV Transformer Energizing Procedure
The transformer energizing procedure involves:
Step-1). Pre-Energization Checks
Step-2). Switchgear and Circuit Checks
Step-3). Energizing Sequence
Step-4). Post-Energization Monitoring
Step-1). Pre-Energization Checks
Ensure all permits (PTW and LOTO) are received.
Ensure transformer is mechanically complete (bushings, conservator, radiator, cooling fans & oil level).
Verify oil test results (BDV, moisture, acidity) are acceptable.
Ensure protection relays and CT/PT circuits are tested & operational.
Check earthing connections (neutral and body earthing).
Ensure tap changer is in the correct position.
Ensure insulation resistance (IR) & polarization index (PI) tests fall within limitations.
Prepare cooling system (fans, pumps and alarms).
Ensure Buchholz relay, PRV, OTI, WTI & oil level indicators are operational.
Communication with the control room is established.
Step-2). Switchgear and Circuit Checks
Check that the entering 66 kV line is safe (no earth fault or short circuit).
Check breaker and isolator interlocks.
Ensure HV side circuit breaker is operational but open.
Check that all isolators on primary and secondary sides are properly positioned.
Step-3). Energizing Sequence
Close the Earth Switch on the transformer’s HV side, discharge, and then open it.
Close the isolator on the HV side.
Close the circuit breaker (CB) from the control panel/SCADA according to control room instructions.
Monitor inrush current (it should settle fast).
Check the relay signals for any anomalous tripping.
After the HV side is turned on, measure the voltage on the LV side before shutting the LV breaker.
Synchronize the LV side (if in parallel with another transformer or a busbar).
Close the LV side circuit breaker.
Step-4). Post-Energization Monitoring
Check the oil temperature, winding temperature & load current.
Check the voltage & frequency stability.
Check for alarms on the Buchholz and protection relays.
Confirm that transformer noise/vibration is normal.
Record all parameters in the commissioning logbook.
In summary, the 66kV transformer energization procedure consists of four systematic steps: pre-energization checks, switchgear inspections, energization sequence, and post-energization monitoring.
Each step assures that the transformer operates safely, reliably & performs well over time.
Power utilities can increase grid reliability, extend transformer life and avoid unexpected failures by implementing industry-standard transformer testing and commissioning methods.
Choosing an organized method to energization is essential for balancing safety, efficiency & equipment longevity.
