Handling an overload (or) short-circuit situation on-site necessitates rapidly, safe and methodical action to protect personnel, equipment and the electrical system.
This is how it’s done:

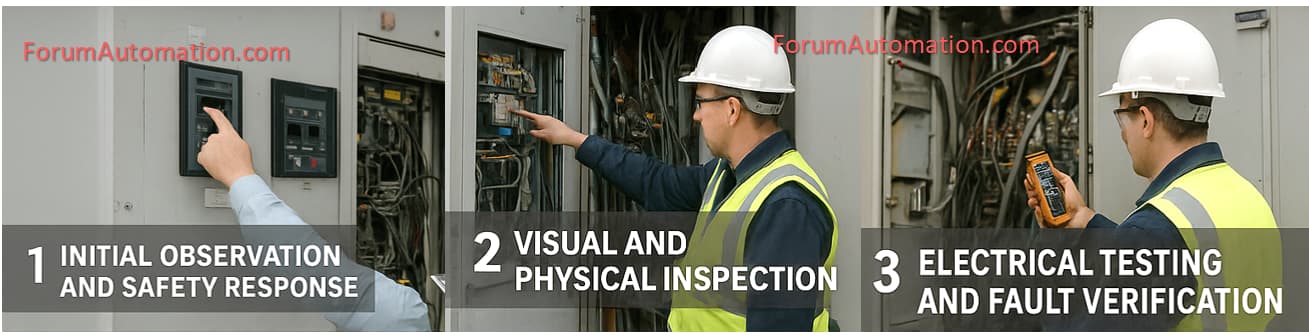

Initial Observation & Safety Response
When an overload or short-circuit develops, a protective device that includes an MCB, MCCB, ACB or relay will often trip first. The immediate focus is safety; do not attempt to re-energize the circuit till the cause has been discovered. Inform the control room or your supervisor about the trip, and then isolate the affected circuit utilizing the Lock-Out Tag-Out (LOTO) technique to prevent accidental energization during inspection.
Visual/Physical Inspection
Following isolation perform a thorough visual check of the area. Look for evidence of smoke, a burning odor, broken cables, discolored terminals (or) loose connections. Examine the control panels & junction boxes for any signs of flash marks (or) melted insulation. This phase frequently provides early indications of whether the failure was caused by an overload (or) a short-circuit condition.
Electrical Testing & Fault Verification
After confirming that the circuit is safe to touch, conduct electrical testing with a multimeter or megger (insulation resistance tester).
For overload conditions, measure the load current & compare it to the equipment’s rated value.
Check for continuity & insulation resistance between phases as well as between phase and ground, to detect short circuits. In motor circuits test the winding resistance to ensure there is no internal damage.
Root Cause Identification
Understanding the underlying reason is crucial for preventing recurrence. Mechanical jamming, excessive load (or) incorrect cable and protection device sizing are the most common causes of overload faults. Short-circuits occur when two conductors come into direct contact as a result of insulation failure, moisture penetration, or loose terminals. Identifying the specific cause allows you to take the appropriate corrective solution rather than a temporary patch.
Correction and System Restoration
After determining the problem, replace or repair any broken wires, contactors or fuses. Tighten all loose terminals & thoroughly clean the components to remove any dust or carbon deposits. Ensure that all protective devices, such as relays or overloads, are properly calibrated and functional. Once all checks have been completed, remove the LOTO tags and gently re-energize the system step by step, constantly monitoring voltage, current & temperature for any irregularities.
Preventive & Maintenance Practices
Implement preventative maintenance procedures to avoid future events like this one. Set up regular inspections and thermal scanning of cables, switchgear & terminals to discover hot spots early. Ensure that the load is adequately balanced between phases and that the protection devices are appropriately rated for the equipment. Periodic testing of circuit breakers, relays & insulation resistance guarantees consistent operation and reduces the probability of overloads or short circuits.
